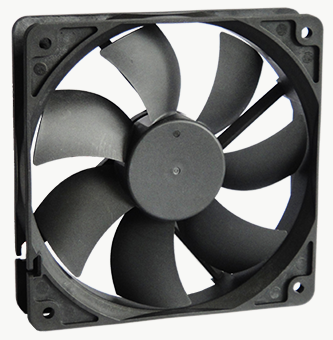

JF12025 120脳120脳25mm DC Axial Cooling Fan
The July Fan JF12025 is a slim 120脳120脳25mm DC axial cooling fan for power supplies, industrial control cabinets, communications equipment, electronics enclosures and other space-conscious cooling applications. The series supports 12V, 24V and 36V configurations with rated-speed options from 1900 to 2600 RPM.
Product Specifications
- Frame size120 脳 120 脳 25 mm
- Rated voltage12V / 24V / 36V DC
- Mounting-hole centers105 脳 105 mm
- Mounting holes4 脳 脴4.5 mm
- Bearing systemBall or sleeve bearing
- Frame / impellerThermoplastic PBT, UL 94V-0
- Rated-speed options1900 / 2200 / 2400 / 2600 RPM
- Weight172 g
Performance Data
| PART NO. | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Maximum Air Flow | Maximum Air Pressure | Noise (dBA) |
|---|---|---|---|---|---|---|---|---|
| JF12025-12M | 12 | 8.0鈥?3.5 | 鈥?/td> | 鈥?/td> | 1900 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-24M | 24 | 18鈥?6.5 | 鈥?/td> | 鈥?/td> | 1900 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-12H | 12 | 8.0鈥?3.5 | 鈥?/td> | 鈥?/td> | 2200 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-24H | 24 | 18鈥?6.5 | 鈥?/td> | 鈥?/td> | 2200 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-36H | 36 | 36鈥?4 | 鈥?/td> | 鈥?/td> | 2200 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-12H | 12 | 8.0鈥?3.5 | 鈥?/td> | 鈥?/td> | 2400 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-24H | 24 | 18鈥?6.5 | 鈥?/td> | 鈥?/td> | 2400 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-12H | 12 | 8.0鈥?3.5 | 鈥?/td> | 鈥?/td> | 2600 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
| JF12025-24H | 24 | 18鈥?6.5 | 鈥?/td> | 鈥?/td> | 2600 | 鈥?/td> | 鈥?/td> | 鈥?/td> |
The source catalog specifies the listed model, voltage range and speed combinations. Values shown as 鈥溾€斺€?were not provided in the supplied data and should be confirmed with July Fan for the selected operating point. Custom lead wires, connectors, speed control and signal-output functions are available on request.
