JF3010 30 x 30 x 10mm DC Axial Cooling Fan
The JF3010 is a compact 30 x 30 x 10.2 mm DC axial cooling fan for electronics cooling, network equipment, control panels and compact thermal-management assemblies. Available in 5 V and 12 V versions, this DC fan uses a flame-retardant PBT frame and impeller with ball- or sleeve-bearing options for dependable operation.
JF3010 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Ball or sleeve bearing
- Nominal voltages: 5 VDC and 12 VDC

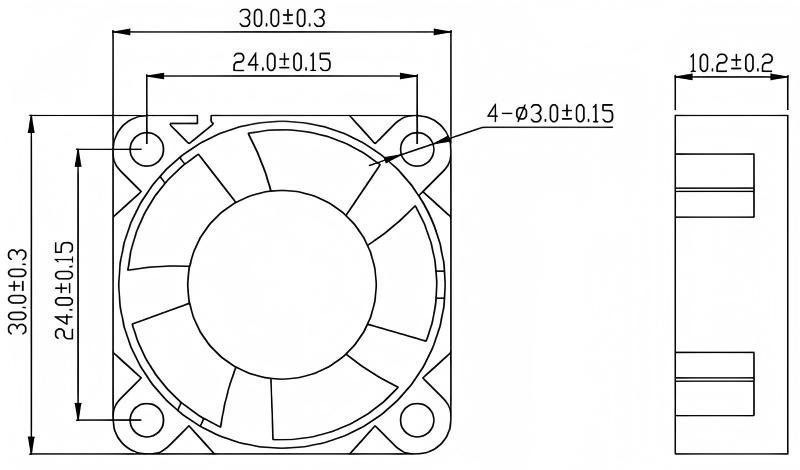

- Dimensions: 30.0 ± 0.3 mm x 30.0 ± 0.3 mm x 10.2 ± 0.2 mm
- Mounting-hole centers: 24.0 ± 0.15 mm; four Ø3.0 ± 0.15 mm holes
- Weight: approximately 7.6 g
Performance Data
| Part No. | Voltage | Speed | Input Power | Max. Air Flow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|
| JF3010-05L / 12L | 5 / 12 VDC | 5800 RPM | 0.50 / 0.48 W | 0.050 m³/min (1.84 CFM) | 1.36 mmH2O | 24.0 dB-A |
| JF3010-05M / 12M | 5 / 12 VDC | 8500 RPM | 0.75 / 0.72 W | 0.080 m³/min (2.90 CFM) | 3.34 mmH2O | 29.0 dB-A |
| JF3010-05H / 12H | 5 / 12 VDC | 10500 RPM | 0.85 / 0.96 W | 0.110 m³/min (3.75 CFM) | 4.48 mmH2O | 32.7 dB-A |
| JF3010-05U / 12U | 5 / 12 VDC | 13000 RPM | 1.10 / 1.20 W | 0.130 m³/min (4.46 CFM) | 6.97 mmH2O | 37.8 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
