JF3507 35 x 35 x 7mm DC Axial Cooling Fan
The JF3507 is a compact 35.3 x 35.3 x 7.6 mm DC axial cooling fan for electronics cooling, control cabinets, compact enclosures and thermal-management assemblies. Its flame-retardant PBT frame and impeller, plus ball- or sleeve-bearing options, provide reliable performance across 5 V and 12 V configurations.
JF3507 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Hydraumatic or sleeve bearing
- Nominal voltages: 5 VDC and 12 VDC

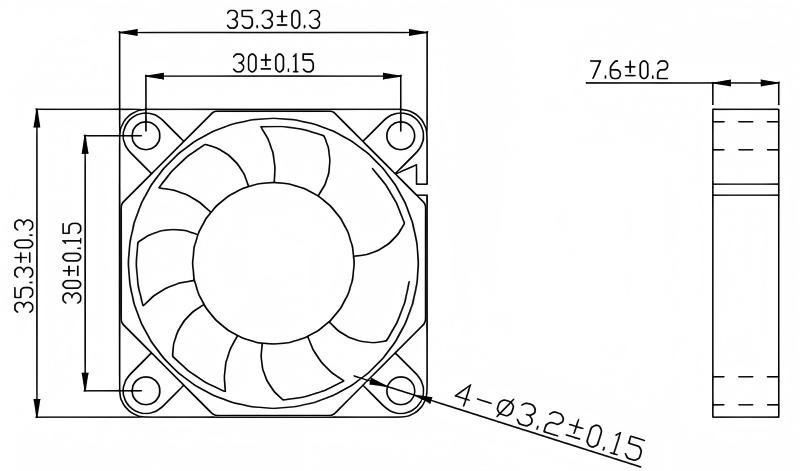

- Dimensions: 35.3 ± 0.3 mm x 35.3 ± 0.3 mm x 7.6 ± 0.2 mm
- Mounting-hole centers: 30.0 ± 0.15 mm; four Ø3.2 ± 0.15 mm holes
- Weight: approximately 6.8 g
- LIFE EXPECTANCY: 30,000 hrs (Sleeve) continuous operating under 25℃, 65%RH and 40,000 hrs (Hydraumatic) continuous operating under 25℃, 65%RH.
Performance Data
| Part No. | Voltage | Speed | Input Power | Max. Air Flow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|
| JF3507-05L / 12L | 5 / 12 VDC | 4500 RPM | 0.55 / 0.60 W | 0.070 m³/min (2.32 CFM) | 0.98 mmH2O | 22.0 dB-A |
| JF3507-05M / 12M | 5 / 12 VDC | 6500 RPM | 0.85 / 0.84 W | 0.100 m³/min (3.41 CFM) | 1.99 mmH2O | 27.0 dB-A |
| JF3507-05H / 12H | 5 / 12 VDC | 9000 RPM | 1.25 / 1.20 W | 0.140 m³/min (5.07 CFM) | 3.53 mmH2O | 33.0 dB-A |
| JF3507-05U / 12U | 5 / 12 VDC | 10000 RPM | 1.65 / 1.68 W | 0.150 m³/min (5.21 CFM) | 4.16 mmH2O | 37.0 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
