JF3510 35 x 35 x 10mm DC Axial Cooling Fan
The JF3510 is a compact 35 x 35 x 10.5 mm DC axial cooling fan for electronics cooling, enclosures, control equipment and thermal-management assemblies. It combines a flame-retardant PBT frame and impeller with ball- or sleeve-bearing options for dependable airflow across 5 V and 12 V configurations.
JF3510 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Ball or sleeve bearing
- Nominal voltages: 5 VDC and 12 VDC

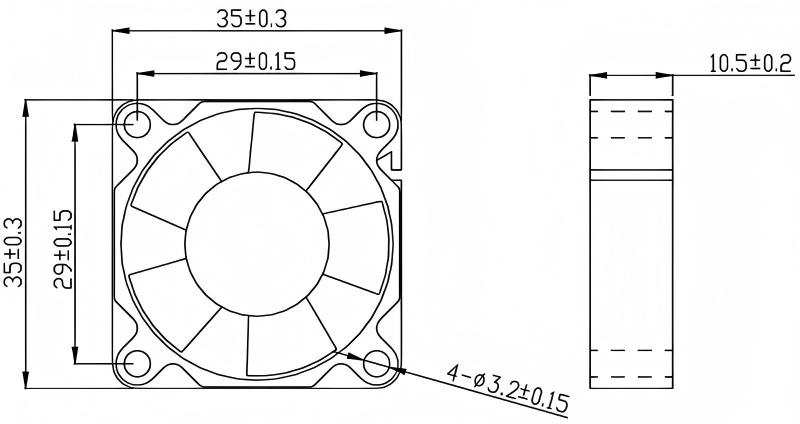

- Dimensions: 35.0 ± 0.3 mm x 35.0 ± 0.3 mm x 10.5 ± 0.2 mm
- Mounting-hole centers: 29.0 ± 0.15 mm; four Ø3.2 ± 0.15 mm holes
- Weight: approximately 9.0 g
Performance Data
| Part No. | Voltage | Speed | Input Power | Max. Air Flow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|
| JF3510-05L / 12L | 5 / 12 VDC | 5000 RPM | 0.45 / 0.48 W | 0.070 m³/min (2.59 CFM) | 1.45 mmH2O | 25.4 dB-A |
| JF3510-05M / 12M | 5 / 12 VDC | 6800 RPM | 0.65 / 0.72 W | 0.100 m³/min (3.50 CFM) | 2.45 mmH2O | 30.0 dB-A |
| JF3510-05H / 12H | 5 / 12 VDC | 8000 RPM | 1.00 / 1.08 W | 0.130 m³/min (4.50 CFM) | 3.24 mmH2O | 33.8 dB-A |
| JF3510-05H / 12H | 5 / 12 VDC | 10000 RPM | 1.05 / 1.20 W | 0.160 m³/min (5.68 CFM) | 5.10 mmH2O | 38.5 dB-A |
| JF3510-05U / 12U | 5 / 12 VDC | 11500 RPM | 1.20 / 1.32 W | 0.170 m³/min (6.15 CFM) | 6.38 mmH2O | 42.0 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
