JF4007 40 x 40 x 7mm DC Axial Cooling Fan
The JF4007 is a compact 40 x 40 x 7.2 mm DC axial cooling fan for electronics cooling, industrial control equipment, compact enclosures and thermal-management assemblies. It combines a flame-retardant PBT frame and impeller with ball- or sleeve-bearing options for reliable airflow in 5 V and 12 V systems.
JF4007 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Hydraumatic or sleeve bearing
- Nominal voltages: 5 VDC and 12 VDC

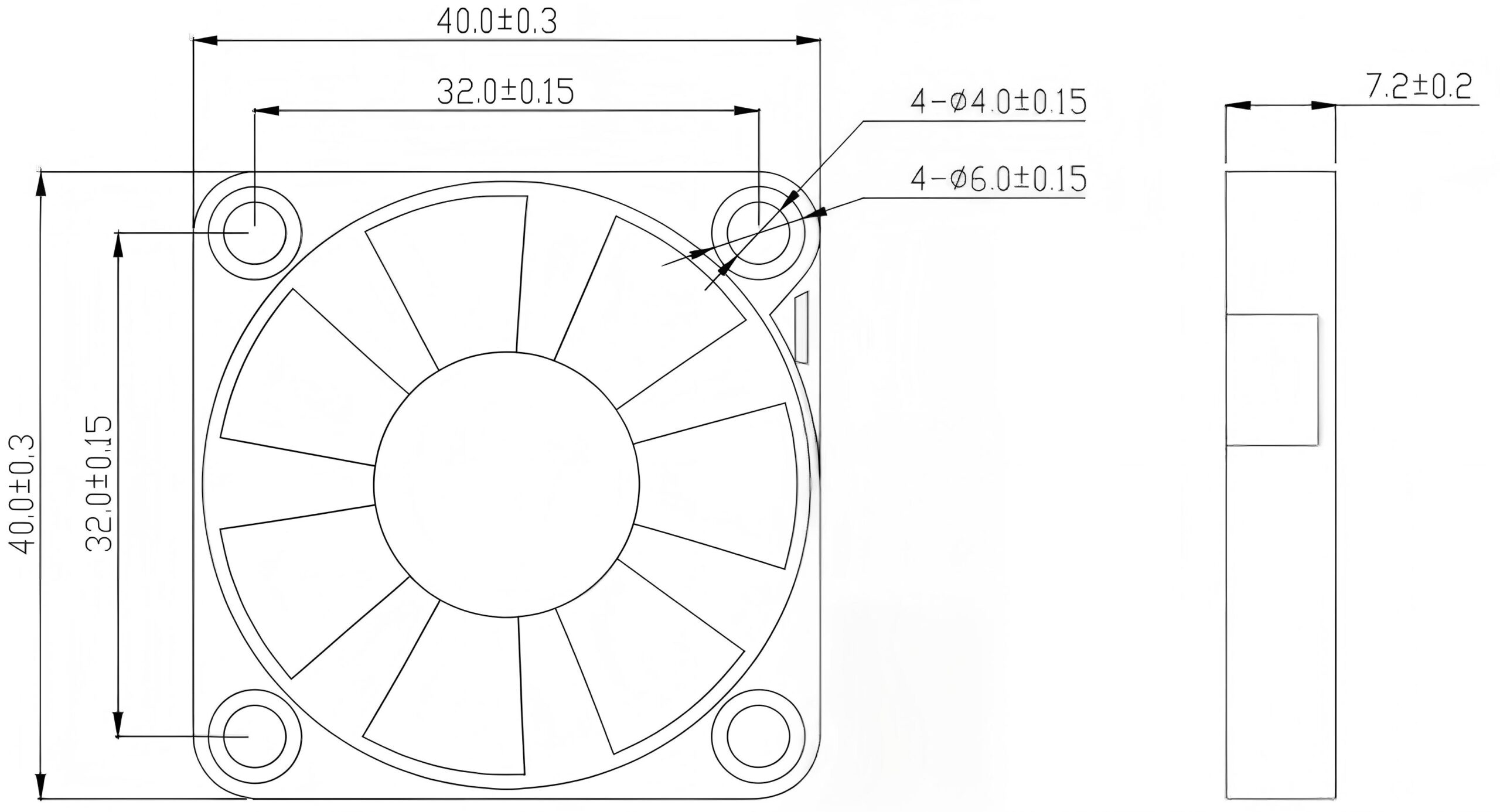

- Dimensions: 40.0 ± 0.3 mm x 40.0 ± 0.3 mm x 7.2 ± 0.2 mm
- Mounting-hole centers: 32.0 ± 0.15 mm; drawing callouts include 4-Ø4.0 ± 0.15 mm and 4-Ø6.0 ± 0.15 mm
- Weight: approximately 14.1 g
- LIFE EXPECTANCY: 30,000 hrs (Sleeve) continuous operating under 25℃, 65%RH and 40,000 hrs (Hydraumatic) continuous operating under 25℃, 65%RH.
Performance Data
| Part No. | Voltage | Speed | Input Power | Max. Air Flow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|
| JF4007-05M / 12M | 5 / 12 VDC | 4500 RPM | 0.60 W | 0.070 m³/min (2.58 CFM) | 1.10 mmH2O | 24.0 dB-A |
| JF4007-05M / 12M | 5 / 12 VDC | 6000 RPM | 0.90 / 0.84 W | 0.110 m³/min (3.84 CFM) | 2.08 mmH2O | 30.0 dB-A |
| JF4007-05H / 12H | 5 / 12 VDC | 7000 RPM | 1.10 / 1.08 W | 0.120 m³/min (4.24 CFM) | 2.16 mmH2O | 33.0 dB-A |
| JF4007-05H / 12H | 5 / 12 VDC | 8000 RPM | 1.25 / 1.20 W | 0.130 m³/min (4.72 CFM) | 3.04 mmH2O | 35.0 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
