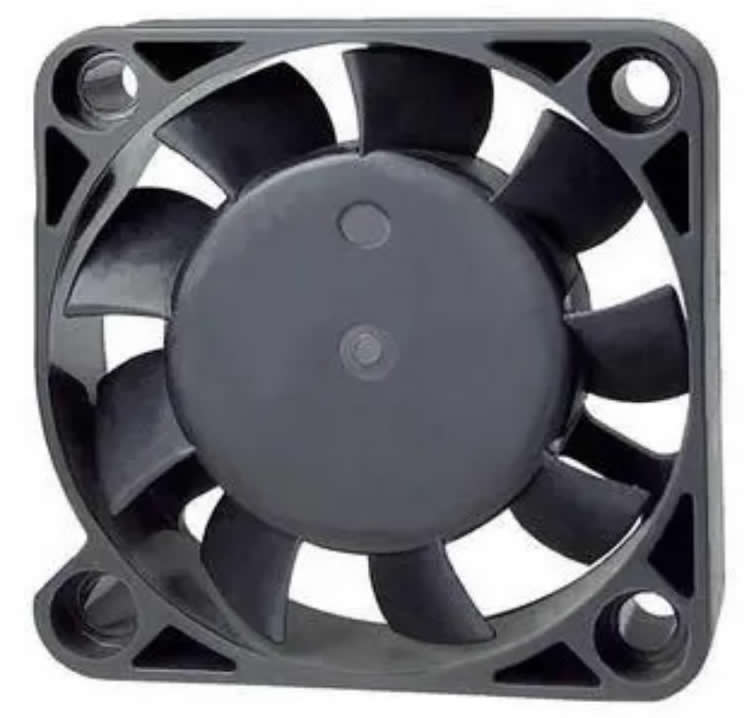

JF4010 40 x 40 x 10mm DC Axial Cooling Fan
The JF4010 is a compact 40 x 40 x 10.4 mm DC axial cooling fan for electronics cooling, industrial control equipment, enclosures and thermal-management assemblies. It combines a flame-retardant PBT frame and impeller with ball- or sleeve-bearing options, delivering up to 8.23 CFM in 5 V and 12 V configurations.
JF4010 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Ball or sleeve bearing
- Nominal voltages: 5 VDC and 12 VDC

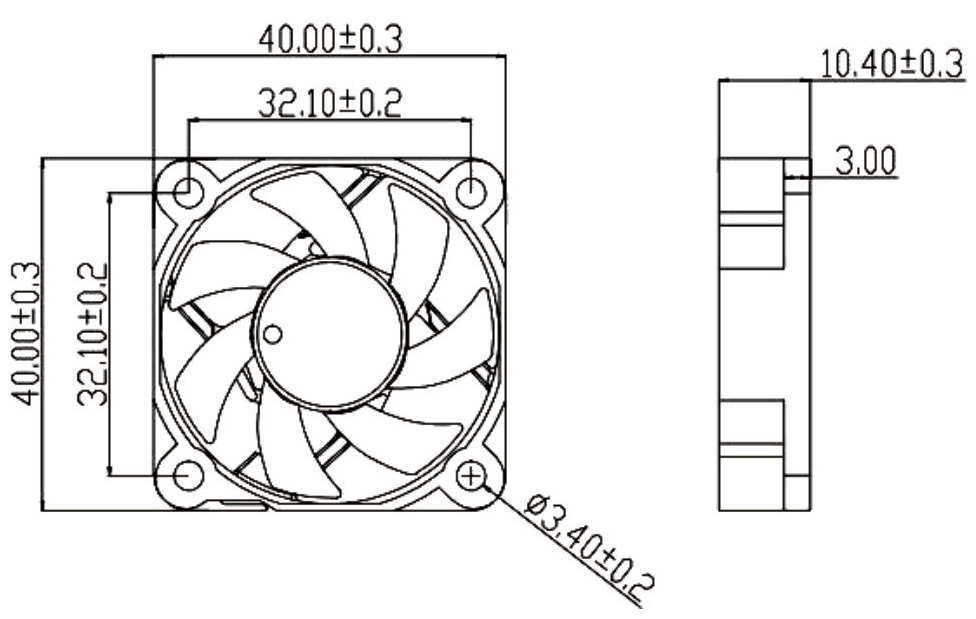

- Dimensions: 40.00 ± 0.3 mm x 40.00 ± 0.3 mm x 10.40 ± 0.3 mm
- Mounting-hole centers: 32.10 ± 0.2 mm; four Ø3.40 ± 0.2 mm holes
- Weight: approximately 14.1 g
Performance Data
| Part No. | Voltage | Speed | Input Power | Max. Air Flow | Max. Air Pressure | Noise |
|---|---|---|---|---|---|---|
| JF4010-05M / 12M | 5 / 12 VDC | 5500 RPM | 0.80 / 0.96 W | 0.170 m³/min (5.97 CFM) | 2.48 mmH2O | 28.5 dB-A |
| JF4010-05M / 12M | 5 / 12 VDC | 6500 RPM | 1.00 / 1.20 W | 0.190 m³/min (6.78 CFM) | 3.12 mmH2O | 34.0 dB-A |
| JF4010-05H / 12H | 5 / 12 VDC | 7500 RPM | 1.80 / 1.92 W | 0.220 m³/min (7.80 CFM) | 4.13 mmH2O | 37.5 dB-A |
| JF4010-05H / 12H | 5 / 12 VDC | 8000 RPM | 2.28 / 2.16 W | 0.230 m³/min (8.23 CFM) | 4.66 mmH2O | 39.6 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
