JF4510 45 x 45 x 10mm DC Axial Cooling Fan

JF4510 is a slim 45 x 45 x 10.4 mm DC axial cooling fan for electronics, networking hardware and industrial controls, available in 5 V, 12 V and 24 V versions with up to 11.25 CFM airflow.

Specifications

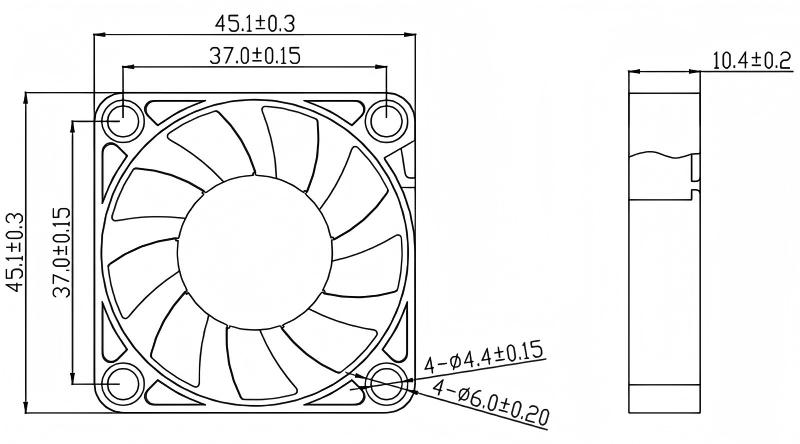

PBT UL 94V-0; ball or sleeve bearing; 45.1 ± 0.3 × 45.1 ± 0.3 × 10.4 ± 0.2 mm; 37.0 ± 0.15 mm mounting centers; mounting-hole callouts Ø4.4 ± 0.15 and Ø6.0 ± 0.20 mm; approx. 17.9 g.

Performance Data

Part No.	Voltage	Operating Range	Current	Power	Speed	Air Flow	Pressure	Noise
JF4510-05M	5 V	3.6–6.8 V	0.15 A	0.75 W	5000 RPM	7.37 CFM	2.19 mmH2O	33.2 dB-A
JF4510-12M	12 V	7.0–13.5 V	0.06 A	0.72 W	5000 RPM	7.37 CFM	2.19 mmH2O	33.2 dB-A
JF4510-24M	24 V	18–26.5 V	0.03 A	0.72 W	5000 RPM	7.37 CFM	2.19 mmH2O	33.2 dB-A
JF4510-05M	5 V	3.6–6.8 V	0.20 A	1.00 W	6000 RPM	9.64 CFM	3.18 mmH2O	38.5 dB-A
JF4510-12M	12 V	7.0–13.5 V	0.08 A	0.96 W	6000 RPM	9.64 CFM	3.18 mmH2O	38.5 dB-A
JF4510-24M	24 V	18–26.5 V	0.04 A	0.96 W	6000 RPM	9.64 CFM	3.18 mmH2O	38.5 dB-A
JF4510-05H	5 V	3.6–6.8 V	0.27 A	1.35 W	6500 RPM	10.24 CFM	3.82 mmH2O	40.2 dB-A
JF4510-12H	12 V	7.0–13.5 V	0.11 A	1.32 W	6500 RPM	10.24 CFM	3.82 mmH2O	40.2 dB-A
JF4510-24H	24 V	18–26.5 V	0.06 A	1.44 W	6500 RPM	10.24 CFM	3.82 mmH2O	40.2 dB-A
JF4510-12H	12 V	7.0–13.5 V	0.13 A	1.56 W	7000 RPM	11.25 CFM	4.49 mmH2O	42.0 dB-A
JF4510-24H	24 V	18–26.5 V	0.07 A	1.68 W	7000 RPM	11.25 CFM	4.49 mmH2O	42.0 dB-A
