JF5015 50 x 50 x 15mm DC Axial Cooling Fan

The JF5015 is a compact 50 x 50 x 15 mm DC axial cooling fan for electronic equipment, network devices, industrial controllers and confined enclosures. Available in 5 V, 12 V and 24 V versions, it delivers airflow up to 18.68 CFM.

JF5015 DC Fan Specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0
Bearing system: Ball or sleeve bearing
Nominal voltages: 5 VDC, 12 VDC and 24 VDC

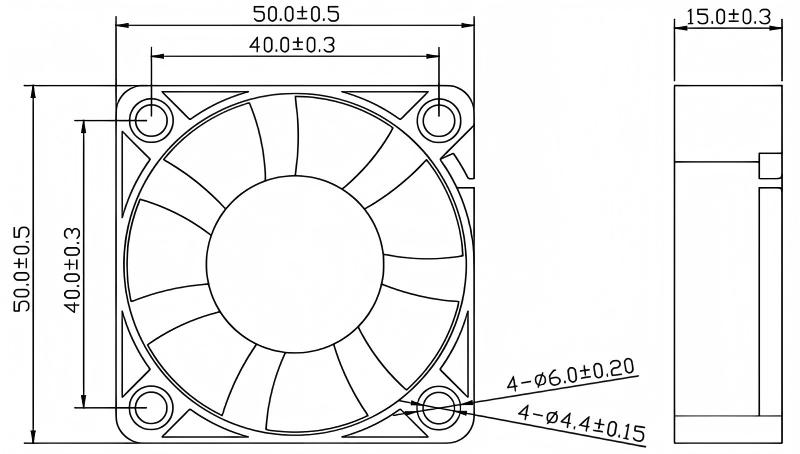

Dimensions: 50 ± 0.5 mm x 50 ± 0.5 mm x 15.0 ± 0.3 mm
Mounting-hole centers: 40 ± 0.3 mm centers; four Ø4.4 ± 0.15 mm holes
Speed range: 4300–7500 RPM
Maximum air flow: 0.53 m³/min (18.68 CFM)
Weight: approximately 26.4 g

Performance Data

Part No.	Rated Voltage	Operating Range	Rated Current	Input Power	Speed	Maximum Air Flow	Maximum Air Pressure	Noise
JF5015-05M	5 V	3.6–6.8 V	0.16 A	0.80 W	4300 RPM	0.30 m³/min / 10.64 CFM	3.02 mmH₂O / 0.12 inH₂O	29.3 dB-A
JF5015-12M	12 V	7.0–13.5 V	0.10 A	1.20 W	4300 RPM	0.30 m³/min / 10.64 CFM	3.02 mmH₂O / 0.12 inH₂O	29.3 dB-A
JF5015-24M	24 V	18–26.5 V	0.05 A	1.20 W	4300 RPM	0.30 m³/min / 10.64 CFM	3.02 mmH₂O / 0.12 inH₂O	29.3 dB-A
JF5015-05H	5 V	3.6–6.8 V	0.21 A	1.05 W	5300 RPM	0.38 m³/min / 13.53 CFM	4.41 mmH₂O / 0.17 inH₂O	35.2 dB-A
JF5015-12H	12 V	7.0–13.5 V	0.12 A	1.44 W	5300 RPM	0.38 m³/min / 13.53 CFM	4.41 mmH₂O / 0.17 inH₂O	35.2 dB-A
JF5015-24H	24 V	18–26.5 V	0.08 A	1.92 W	5300 RPM	0.38 m³/min / 13.53 CFM	4.41 mmH₂O / 0.17 inH₂O	35.2 dB-A
JF5015-12H	12 V	7.0–13.5 V	0.21 A	2.52 W	6400 RPM	0.46 m³/min / 16.33 CFM	6.10 mmH₂O / 0.24 inH₂O	39.5 dB-A
JF5015-24H	24 V	18–26.5 V	0.10 A	2.40 W	6400 RPM	0.46 m³/min / 16.33 CFM	6.10 mmH₂O / 0.24 inH₂O	39.5 dB-A
JF5015-12U	12 V	7.0–13.5 V	0.26 A	3.12 W	7500 RPM	0.53 m³/min / 18.68 CFM	8.03 mmH₂O / 0.32 inH₂O	44.5 dB-A
JF5015-24U	24 V	18–26.5 V	0.15 A	3.60 W	7500 RPM	0.53 m³/min / 18.68 CFM	8.03 mmH₂O / 0.32 inH₂O	44.5 dB-A

Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
