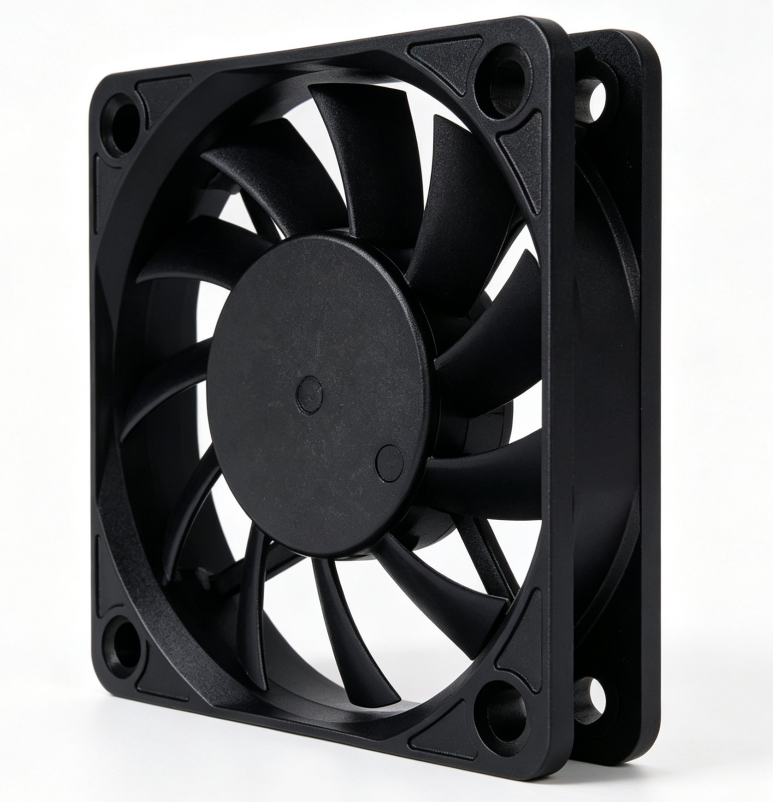

JF6010 60 x 60 x 10mm DC Axial Cooling Fan

The JF6010 is a slim 60 x 60 x 10.5 mm DC axial cooling fan for networking equipment, electronics, industrial controls, compact enclosures and thermal-management systems. Available in 5 V, 12 V and 24 V configurations, it delivers airflow up to 18.56 CFM with a low-profile design.

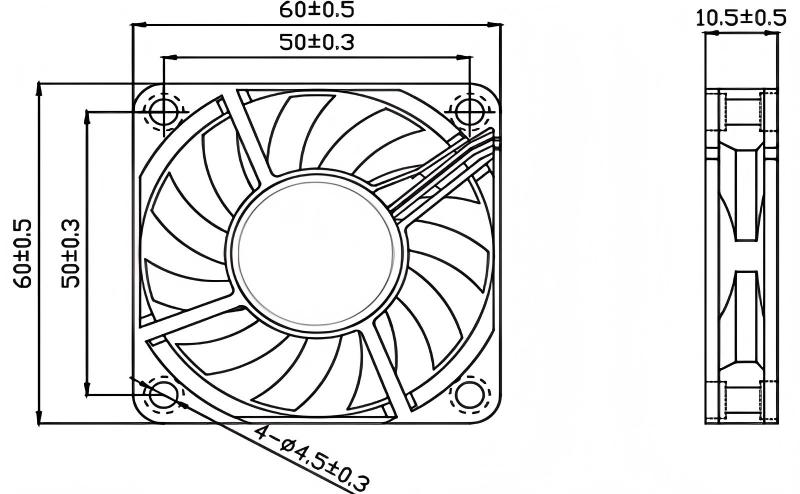

JF6010 dimensional drawing showing 60 mm frame and 10.5 mm thickness — JF6010 dimensional drawing (mm)

JF6010 DC Fan Specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0
Bearing system: Ball or sleeve bearing
Nominal voltages: 5 VDC, 12 VDC and 24 VDC
Dimensions: 60 ± 0.5 mm x 60 ± 0.5 mm x 10.5 ± 0.5 mm
Mounting-hole centers: 50 ± 0.3 mm; four Ø4.5 ± 0.3 mm holes
Speed range: 2500–4800 RPM
Maximum air flow: 0.53 m³/min (18.56 CFM)
Weight: approximately 20.4 g

Performance Data

Part No.	Rated Voltage	Operating Range	Rated Current	Input Power	Speed	Maximum Air Flow	Maximum Air Pressure	Noise
JF6010-05L	5 VDC	3.6–6.8 VDC	0.07 A	0.35 W	2500 RPM	0.27 m³/min (9.50 CFM)	0.92 mmH₂O (0.04 inH₂O)	22.7 dB-A
JF6010-12L	12 VDC	7.0–13.5 VDC	0.03 A	0.36 W	2500 RPM	0.27 m³/min (9.50 CFM)	0.92 mmH₂O (0.04 inH₂O)	22.7 dB-A
JF6010-05M	5 VDC	3.6–6.8 VDC	0.12 A	0.60 W	3500 RPM	0.39 m³/min (13.70 CFM)	1.92 mmH₂O (0.08 inH₂O)	27.4 dB-A
JF6010-12M	12 VDC	7.0–13.5 VDC	0.05 A	0.60 W	3500 RPM	0.39 m³/min (13.70 CFM)	1.92 mmH₂O (0.08 inH₂O)	27.4 dB-A
JF6010-12H	12 VDC	7.0–13.5 VDC	0.11 A	1.32 W	4500 RPM	0.49 m³/min (17.31 CFM)	2.80 mmH₂O (0.11 inH₂O)	31.7 dB-A
JF6010-24H	24 VDC	18–26.5 VDC	0.06 A	1.44 W	4500 RPM	0.49 m³/min (17.31 CFM)	2.80 mmH₂O (0.11 inH₂O)	31.7 dB-A
JF6010-12H	12 VDC	7.0–13.5 VDC	0.12 A	1.44 W	4800 RPM	0.53 m³/min (18.56 CFM)	3.04 mmH₂O (0.12 inH₂O)	33.4 dB-A
JF6010-24H	24 VDC	18–26.5 VDC	0.07 A	1.64 W	4800 RPM	0.53 m³/min (18.56 CFM)	3.04 mmH₂O (0.12 inH₂O)	33.4 dB-A

Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
