JF6015 60 x 60 x 15mm DC Axial Cooling Fan
The JF6015 is a compact 60 x 60 x 15 mm DC axial cooling fan for networking devices, industrial controllers, electronics, power equipment and enclosed thermal-management systems. Available in 5 V, 12 V and 24 V configurations, it provides airflow up to 25.0 CFM.
JF6015 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Ball or sleeve bearing
- Nominal voltages: 5 VDC, 12 VDC and 24 VDC

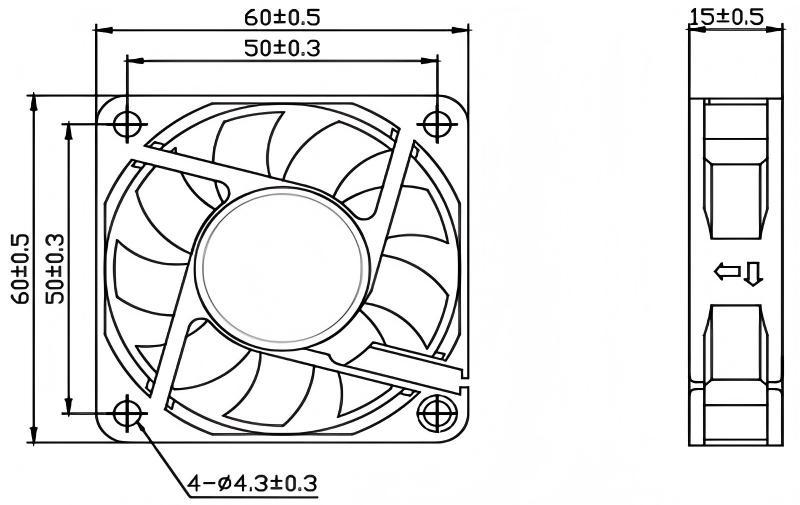

- Dimensions: 60 ± 0.5 mm x 60 ± 0.5 mm x 15 ± 0.5 mm
- Mounting-hole centers: 50 ± 0.3 mm; four Ø4.3 ± 0.3 mm holes
- Speed range: 4000–6000 RPM
- Maximum air flow: 0.71 m³/min (25.0 CFM)
- Weight: approximately 37.3 g
Performance Data
| Part No. | Rated Voltage | Operating Range | Rated Current | Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF6015-05M | 5 VDC | 3.6–6.8 VDC | 0.35 A | 1.65 W | 4000 RPM | 0.42 m³/min (15.09 CFM) | 3.38 mmH₂O (0.14 inH₂O) | 32.2 dB-A |
| JF6015-12M | 12 VDC | 7.0–13.5 VDC | 0.15 A | 1.60 W | 4000 RPM | 0.42 m³/min (15.09 CFM) | 3.38 mmH₂O (0.14 inH₂O) | 32.2 dB-A |
| JF6015-12M | 12 VDC | 7.0–13.5 VDC | 0.20 A | 2.40 W | 5000 RPM | 0.55 m³/min (19.56 CFM) | 5.23 mmH₂O (0.21 inH₂O) | 36.0 dB-A |
| JF6015-24M | 24 VDC | 18–26.5 VDC | 0.10 A | 2.40 W | 5000 RPM | 0.55 m³/min (19.56 CFM) | 5.23 mmH₂O (0.21 inH₂O) | 36.0 dB-A |
| JF6015-12H | 12 VDC | 7.0–13.5 VDC | 0.26 A | 3.12 W | 6000 RPM | 0.71 m³/min (25.0 CFM) | 7.33 mmH₂O (0.29 inH₂O) | 45.0 dB-A |
| JF6015-24H | 24 VDC | 18–26.5 VDC | 0.13 A | 3.12 W | 6000 RPM | 0.71 m³/min (25.0 CFM) | 7.33 mmH₂O (0.29 inH₂O) | 45.0 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
