JF6020 60 x 60 x 20mm DC Axial Cooling Fan
The JF6020 is a compact 60 x 60 x 20 mm DC axial cooling fan for industrial controls, networking devices, electronics, power equipment and enclosed thermal-management systems. Available in 5 V, 12 V and 24 V configurations, it delivers airflow up to 21.15 CFM.
JF6020 DC Fan Specifications
- Frame and impeller: Thermoplastic PBT, UL 94V-0
- Bearing system: Ball or sleeve bearing
- Nominal voltages: 5 VDC, 12 VDC and 24 VDC

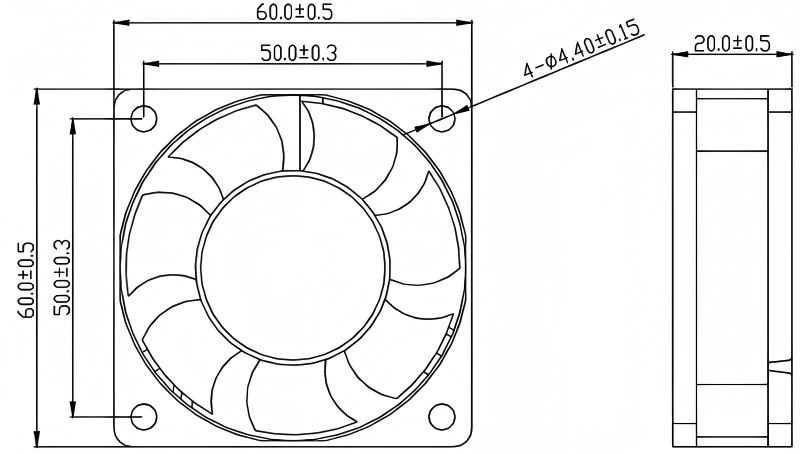

- Dimensions: 60 ± 0.5 mm x 60 ± 0.5 mm x 20.0 ± 0.5 mm
- Mounting-hole centers: 50 ± 0.3 mm; four Ø4.40 ± 0.15 mm holes
- Speed range: 3500–4500 RPM
- Maximum air flow: 0.60 m³/min (21.15 CFM)
- Weight: approximately 47.3 g
Performance Data
| Part No. | Rated Voltage | Operating Range | Rated Current | Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| JF6020-05L | 5 VDC | 3.6–6.8 VDC | 0.12 A | 0.60 W | 3500 RPM | 0.47 m³/min (16.52 CFM) | 3.18 mmH₂O (0.13 inH₂O) | 33.5 dB-A |
| JF6020-12L | 12 VDC | 7.0–13.5 VDC | 0.05 A | 0.60 W | 3500 RPM | 0.47 m³/min (16.52 CFM) | 3.18 mmH₂O (0.13 inH₂O) | 33.5 dB-A |
| JF6020-24L | 24 VDC | 18–26.5 VDC | 0.03 A | 0.72 W | 3500 RPM | 0.47 m³/min (16.52 CFM) | 3.18 mmH₂O (0.13 inH₂O) | 33.5 dB-A |
| JF6020-12M | 12 VDC | 7.0–13.5 VDC | 0.07 A | 0.84 W | 4000 RPM | 0.55 m³/min (19.47 CFM) | 4.29 mmH₂O (0.17 inH₂O) | 36.8 dB-A |
| JF6020-24M | 24 VDC | 18–26.5 VDC | 0.04 A | 0.96 W | 4000 RPM | 0.55 m³/min (19.47 CFM) | 4.29 mmH₂O (0.17 inH₂O) | 36.8 dB-A |
| JF6020-12H | 12 VDC | 7.0–13.5 VDC | 0.10 A | 1.20 W | 4500 RPM | 0.60 m³/min (21.15 CFM) | 5.32 mmH₂O (0.21 inH₂O) | 40.9 dB-A |
| JF6020-24H | 24 VDC | 18–26.5 VDC | 0.05 A | 1.20 W | 4500 RPM | 0.60 m³/min (21.15 CFM) | 5.32 mmH₂O (0.21 inH₂O) | 40.9 dB-A |
Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
