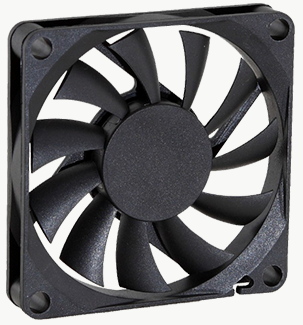

JF7010 70 x 70 x 10mm DC Axial Cooling Fan

The JF7010 is a slim 70 x 70 x 10.5 mm DC axial cooling fan for networking equipment, electronics, industrial controllers, compact enclosures and thermal-management systems. Available in 5 V, 12 V and 24 V configurations, it delivers airflow up to 18.46 CFM.

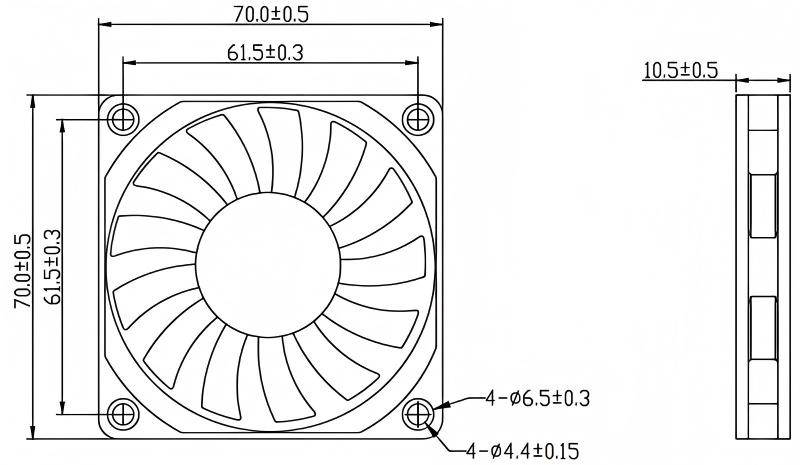

JF7010 dimensional drawing showing 70 mm frame and 10.5 mm thickness — JF7010 dimensional drawing (mm)

JF7010 DC Fan Specifications

Frame and impeller: Thermoplastic PBT, UL 94V-0
Bearing system: Ball or sleeve bearing
Nominal voltages: 5 VDC, 12 VDC and 24 VDC
Dimensions: 70 ± 0.5 mm x 70 ± 0.5 mm x 10.5 ± 0.5 mm
Mounting-hole centers: 61.5 ± 0.3 mm; four Ø4.4 ± 0.15 mm holes with Ø6.5 ± 0.3 mm outer recesses
Speed range: 2000–3000 RPM
Maximum air flow: 0.52 m³/min (18.46 CFM)
Weight: approximately 27.8 g

Performance Data

Part No.	Rated Voltage	Operating Range	Rated Current	Input Power	Speed	Maximum Air Flow	Maximum Air Pressure	Noise
JF7010-05L	5 VDC	3.6–6.8 VDC	0.21 A	1.05 W	2000 RPM	0.29 m³/min (10.31 CFM)	0.90 mmH₂O (0.03 inH₂O)	23.4 dB-A
JF7010-12L	12 VDC	7.0–13.5 VDC	0.10 A	1.20 W	2000 RPM	0.29 m³/min (10.31 CFM)	0.90 mmH₂O (0.03 inH₂O)	23.4 dB-A
JF7010-24L	24 VDC	18–26.5 VDC	0.05 A	1.20 W	2000 RPM	0.29 m³/min (10.31 CFM)	0.90 mmH₂O (0.03 inH₂O)	23.4 dB-A
JF7010-05M	5 VDC	3.6–6.8 VDC	0.33 A	1.65 W	2500 RPM	0.42 m³/min (14.71 CFM)	1.55 mmH₂O (0.06 inH₂O)	27.2 dB-A
JF7010-12M	12 VDC	7.0–13.5 VDC	0.14 A	1.68 W	2500 RPM	0.42 m³/min (14.71 CFM)	1.55 mmH₂O (0.06 inH₂O)	27.2 dB-A
JF7010-24M	24 VDC	18–26.5 VDC	0.07 A	1.68 W	2500 RPM	0.42 m³/min (14.71 CFM)	1.55 mmH₂O (0.06 inH₂O)	27.2 dB-A
JF7010-12H	12 VDC	7.0–13.5 VDC	0.20 A	2.40 W	3000 RPM	0.52 m³/min (18.46 CFM)	2.07 mmH₂O (0.08 inH₂O)	30.9 dB-A
JF7010-24H	24 VDC	18–26.5 VDC	0.10 A	2.40 W	3000 RPM	0.52 m³/min (18.46 CFM)	2.07 mmH₂O (0.08 inH₂O)	30.9 dB-A

Performance values are measured at rated voltage. Contact Julyfan for alternative voltage, speed, wire, sensor and control-function configurations.
