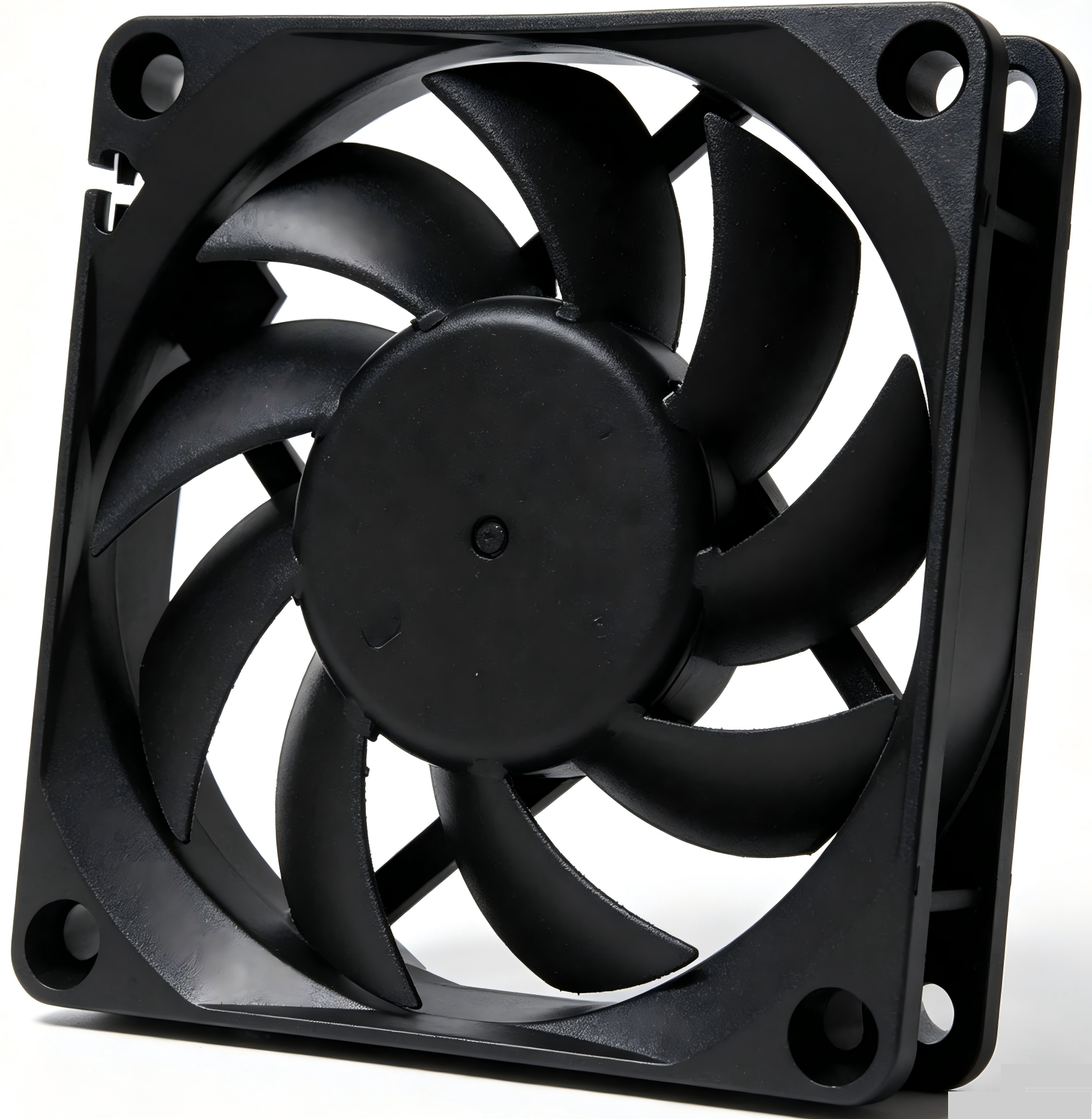

JF7015 70×70×15mm DC Axial Cooling Fan
The JF7015 is a slim 70 mm DC axial cooling fan designed for compact electronic equipment, communication devices, control panels and other space-limited thermal-management applications. It combines a 15 mm profile with 5 V, 12 V and 24 V options, airflow up to 28.97 CFM and a durable flame-retardant PBT construction.
Specifications

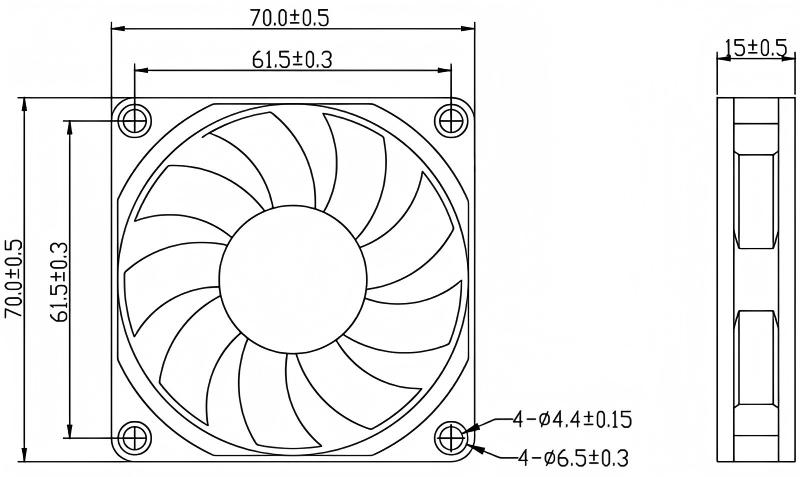

- Dimensions: 70 ± 0.5 × 70 ± 0.5 × 15 ± 0.5 mm
- Mounting-hole centers: 61.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.4 ± 0.15 mm with Ø6.5 ± 0.3 mm recesses
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 5 VDC, 12 VDC and 24 VDC
- Speed range: 3500 to 4500 RPM
- Maximum airflow: 0.82 m³/min (28.97 CFM)
- Product weight: 43.5 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF7015-05L | 5 | 3.6-6.8 | 0.20 | 1.00 | 3500 | 0.64 | 22.52 | 2.91 | 0.11 | 33.5 |
| JF7015-12L | 12 | 7.0-13.5 | 0.08 | 0.96 | 3500 | 0.64 | 22.52 | 2.91 | 0.11 | 33.5 |
| JF7015-24L | 24 | 18-26.5 | 0.04 | 0.96 | 3500 | 0.64 | 22.52 | 2.91 | 0.11 | 33.5 |
| JF7015-12M | 12 | 7.0-13.5 | 0.12 | 1.44 | 4000 | 0.70 | 24.65 | 3.69 | 0.15 | 35.3 |
| JF7015-24M | 24 | 18-26.5 | 0.06 | 1.44 | 4000 | 0.70 | 24.65 | 3.69 | 0.15 | 35.3 |
| JF7015-12H | 12 | 7.0-13.5 | 0.17 | 2.04 | 4500 | 0.82 | 28.97 | 4.66 | 0.18 | 40.5 |
| JF7015-24H | 24 | 18-26.5 | 0.09 | 2.16 | 4500 | 0.82 | 28.97 | 4.66 | 0.18 | 40.5 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
