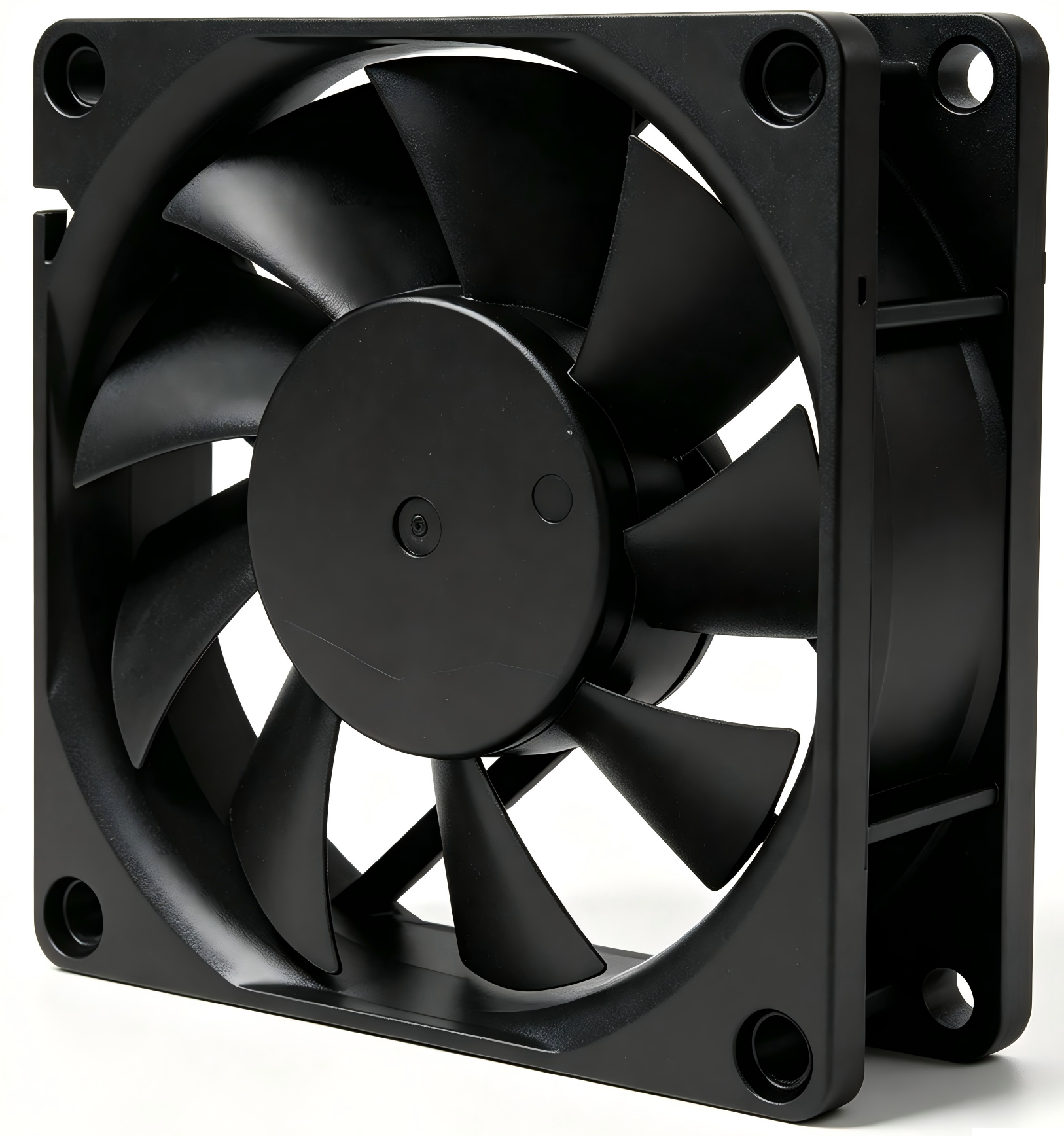

JF7020 70×70×20mm DC Axial Cooling Fan
The JF7020 is a compact 70 mm DC axial cooling fan with a 20 mm profile for industrial controls, electronics, communication equipment and space-conscious thermal systems. Its 12 V and 24 V configurations deliver speeds from 2500 to 5000 RPM and airflow up to 42.09 CFM in a flame-retardant PBT frame.
Specifications

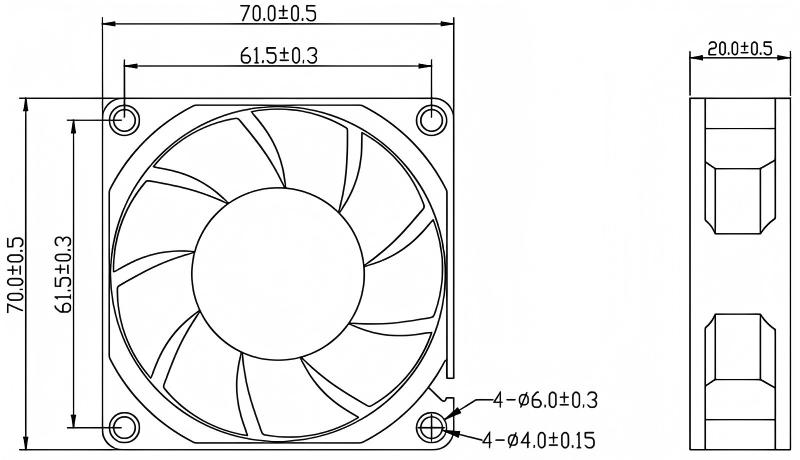

- Dimensions: 70 ± 0.5 × 70 ± 0.5 × 20 ± 0.5 mm
- Mounting-hole centers: 61.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.0 ± 0.15 mm with Ø6.0 ± 0.3 mm recesses
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC and 24 VDC
- Speed range: 2500 to 5000 RPM
- Maximum airflow: 1.19 m³/min (42.09 CFM)
- Product weight: 59.3 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF7020-12L | 12 | 7.0-13.5 | 0.12 | 1.44 | 2500 | 0.60 | 21.36 | 1.91 | 0.08 | 26.3 |
| JF7020-24L | 24 | 18-26.5 | 0.06 | 1.44 | 2500 | 0.60 | 21.36 | 1.91 | 0.08 | 26.3 |
| JF7020-12M | 12 | 7.0-13.5 | 0.20 | 2.40 | 3000 | 0.72 | 25.26 | 2.74 | 0.11 | 33.6 |
| JF7020-24M | 24 | 18-26.5 | 0.11 | 2.64 | 3000 | 0.72 | 25.26 | 2.74 | 0.11 | 33.6 |
| JF7020-12M | 12 | 7.0-13.5 | 0.24 | 2.88 | 3500 | 0.84 | 29.55 | 3.81 | 0.15 | 38.8 |
| JF7020-24M | 24 | 18-26.5 | 0.13 | 3.12 | 3500 | 0.84 | 29.55 | 3.81 | 0.15 | 38.8 |
| JF7020-12H | 12 | 7.0-13.5 | 0.34 | 4.08 | 4000 | 0.97 | 34.15 | 4.97 | 0.20 | 40.6 |
| JF7020-24H | 24 | 18-26.5 | 0.17 | 4.08 | 4000 | 0.97 | 34.15 | 4.97 | 0.20 | 40.6 |
| JF7020-12H | 12 | 7.0-13.5 | 0.44 | 5.28 | 4500 | 1.06 | 37.39 | 6.11 | 0.24 | 42.2 |
| JF7020-24H | 24 | 18-26.5 | 0.22 | 5.28 | 4500 | 1.06 | 37.39 | 6.11 | 0.24 | 42.2 |
| JF7020-12H | 12 | 7.0-13.5 | 0.48 | 5.76 | 5000 | 1.19 | 42.09 | 7.71 | 0.30 | 44.3 |
| JF7020-24H | 24 | 18-26.5 | 0.24 | 5.76 | 5000 | 1.19 | 42.09 | 7.71 | 0.30 | 44.3 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
