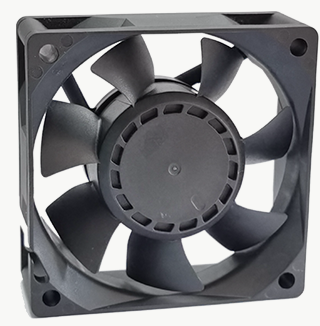

JF7025 70×70×25mm DC Axial Cooling Fan
The JF7025 is a high-performance 70 mm DC axial cooling fan with a 25 mm frame depth for industrial electronics, power supplies, control cabinets and communication equipment. Available in 12 V, 24 V and 48 V versions, it offers speeds up to 6000 RPM and airflow up to 54.55 CFM in a durable flame-retardant PBT housing.
Specifications

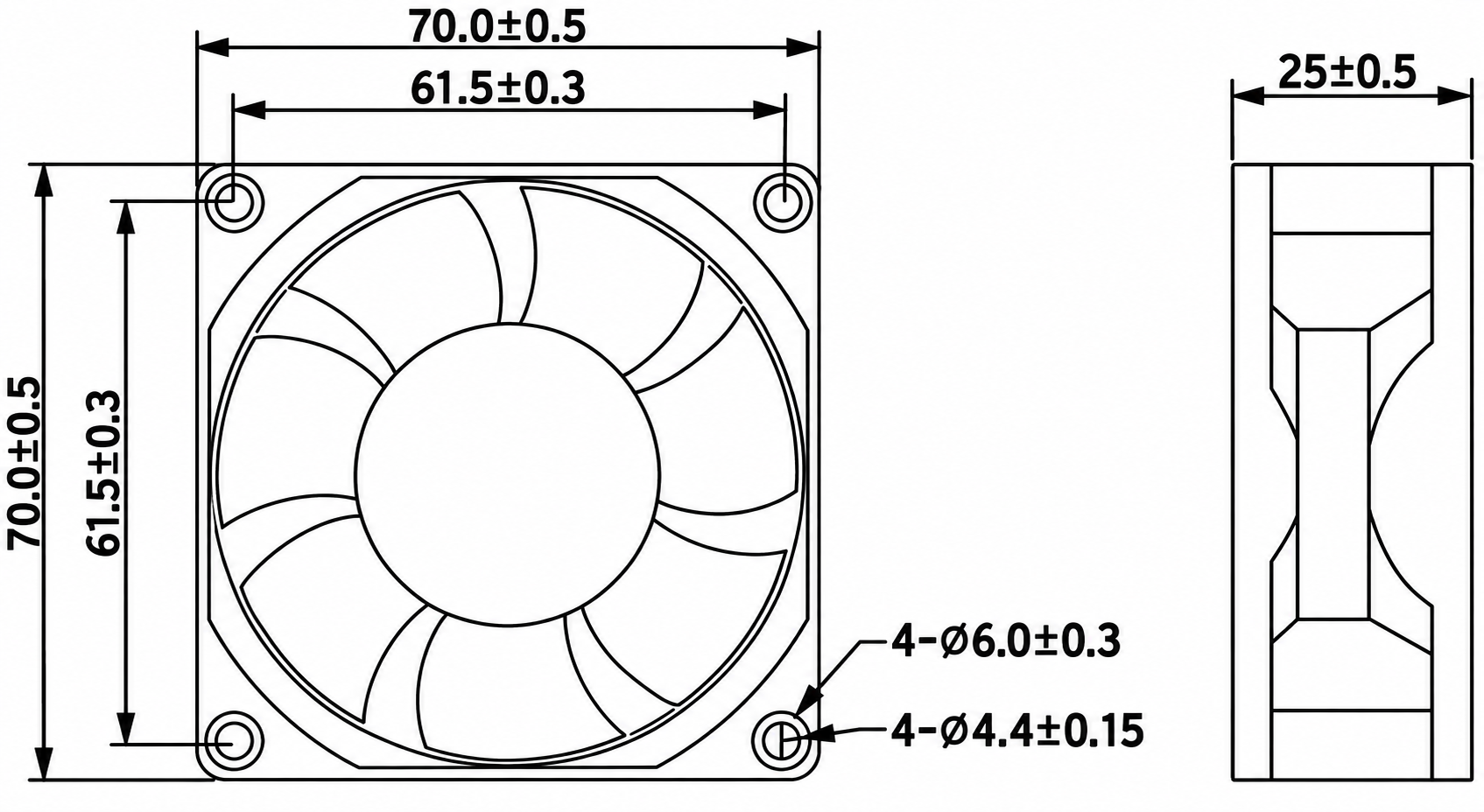

- Dimensions: 70 ± 0.5 × 70 ± 0.5 × 25 ± 0.5 mm
- Mounting-hole centers: 61.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.4 ± 0.15 mm with Ø6.0 ± 0.3 mm recesses
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC, 24 VDC and 48 VDC
- Speed range: 3000 to 6000 RPM
- Maximum airflow: 1.54 m³/min (54.55 CFM)
- Product weight: 67.3 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF7025-12L | 12 | 7.0-13.5 | 0.14 | 1.68 | 3000 | 0.74 | 26.05 | 3.34 | 0.13 | 30.3 |
| JF7025-24L | 24 | 18-26.5 | 0.07 | 1.68 | 3000 | 0.74 | 26.05 | 3.34 | 0.13 | 30.3 |
| JF7025-12M | 12 | 7.0-13.5 | 0.18 | 2.16 | 3500 | 0.85 | 29.90 | 4.54 | 0.18 | 35.2 |
| JF7025-24M | 24 | 18-26.5 | 0.09 | 2.16 | 3500 | 0.85 | 29.90 | 4.54 | 0.18 | 35.2 |
| JF7025-12M | 12 | 7.0-13.5 | 0.22 | 2.64 | 4000 | 0.98 | 34.76 | 5.82 | 0.23 | 38.6 |
| JF7025-24M | 24 | 18-26.5 | 0.11 | 2.64 | 4000 | 0.98 | 34.76 | 5.82 | 0.23 | 38.6 |
| JF7025-12H | 12 | 7.0-13.5 | 0.31 | 3.72 | 5000 | 1.23 | 43.59 | 8.92 | 0.35 | 45.1 |
| JF7025-24H | 24 | 18-26.5 | 0.16 | 3.84 | 5000 | 1.23 | 43.59 | 8.92 | 0.35 | 45.1 |
| JF7025-12U | 12 | 7.0-13.5 | 0.68 | 8.16 | 6000 | 1.54 | 54.55 | 13.43 | 0.53 | 53.6 |
| JF7025-24U | 24 | 18-26.5 | 0.30 | 7.20 | 6000 | 1.54 | 54.55 | 13.43 | 0.53 | 53.6 |
| JF7025-48U | 48 | 36-54 | 0.15 | 7.20 | 6000 | 1.54 | 54.55 | 13.43 | 0.53 | 53.6 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
