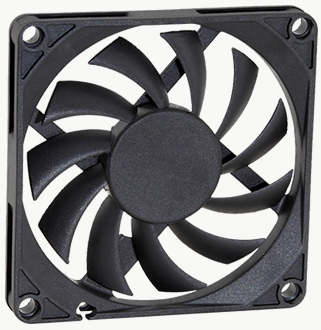

JF8010 80×80×10mm DC Axial Cooling Fan
The JF8010 is an ultra-slim 80 mm DC axial cooling fan for compact electronics, display equipment, communication devices and low-profile thermal-management systems. Its 5 V, 12 V and 24 V options provide speeds up to 3500 RPM and airflow up to 26.59 CFM in a flame-retardant PBT frame.
Specifications

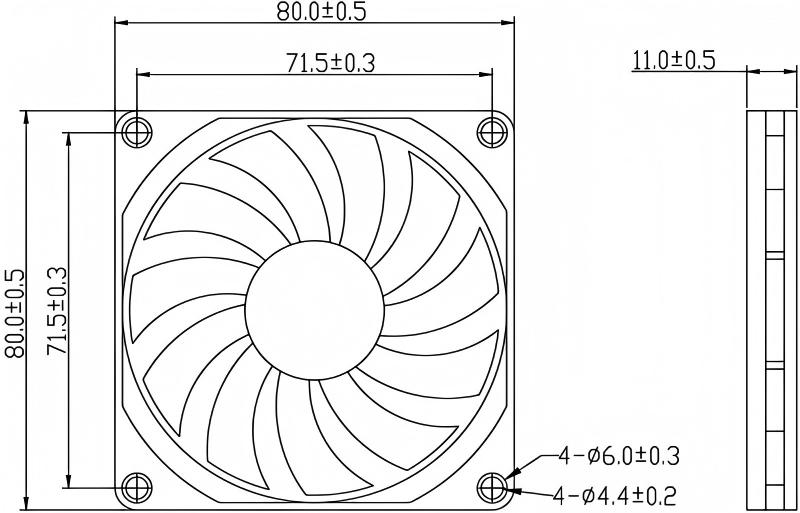

- Dimensions: 80 ± 0.5 × 80 ± 0.5 × 11 ± 0.5 mm
- Mounting-hole centers: 71.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.4 ± 0.2 mm with Ø6.0 ± 0.3 mm recesses
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 5 VDC, 12 VDC and 24 VDC
- Speed range: 2500 to 3500 RPM
- Maximum airflow: 0.75 m³/min (26.59 CFM)
- Product weight: 38.3 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF8010-05L | 5 | 3.6-6.8 | 0.17 | 0.85 | 2500 | 0.53 | 18.65 | 1.15 | 0.05 | 31.3 |
| JF8010-12L | 12 | 7.0-13.5 | 0.07 | 0.84 | 2500 | 0.53 | 18.65 | 1.15 | 0.05 | 31.3 |
| JF8010-24L | 24 | 18-26.5 | 0.04 | 0.96 | 2500 | 0.53 | 18.65 | 1.15 | 0.05 | 31.3 |
| JF8010-12M | 12 | 7.0-13.5 | 0.11 | 1.32 | 3000 | 0.61 | 21.70 | 1.58 | 0.06 | 33.5 |
| JF8010-24M | 24 | 18-26.5 | 0.06 | 1.44 | 3000 | 0.61 | 21.70 | 1.58 | 0.06 | 33.5 |
| JF8010-12H | 12 | 7.0-13.5 | 0.22 | 2.64 | 3500 | 0.75 | 26.59 | 2.34 | 0.09 | 36.3 |
| JF8010-24H | 24 | 18-26.5 | 0.11 | 2.64 | 3500 | 0.75 | 26.59 | 2.34 | 0.09 | 36.3 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
