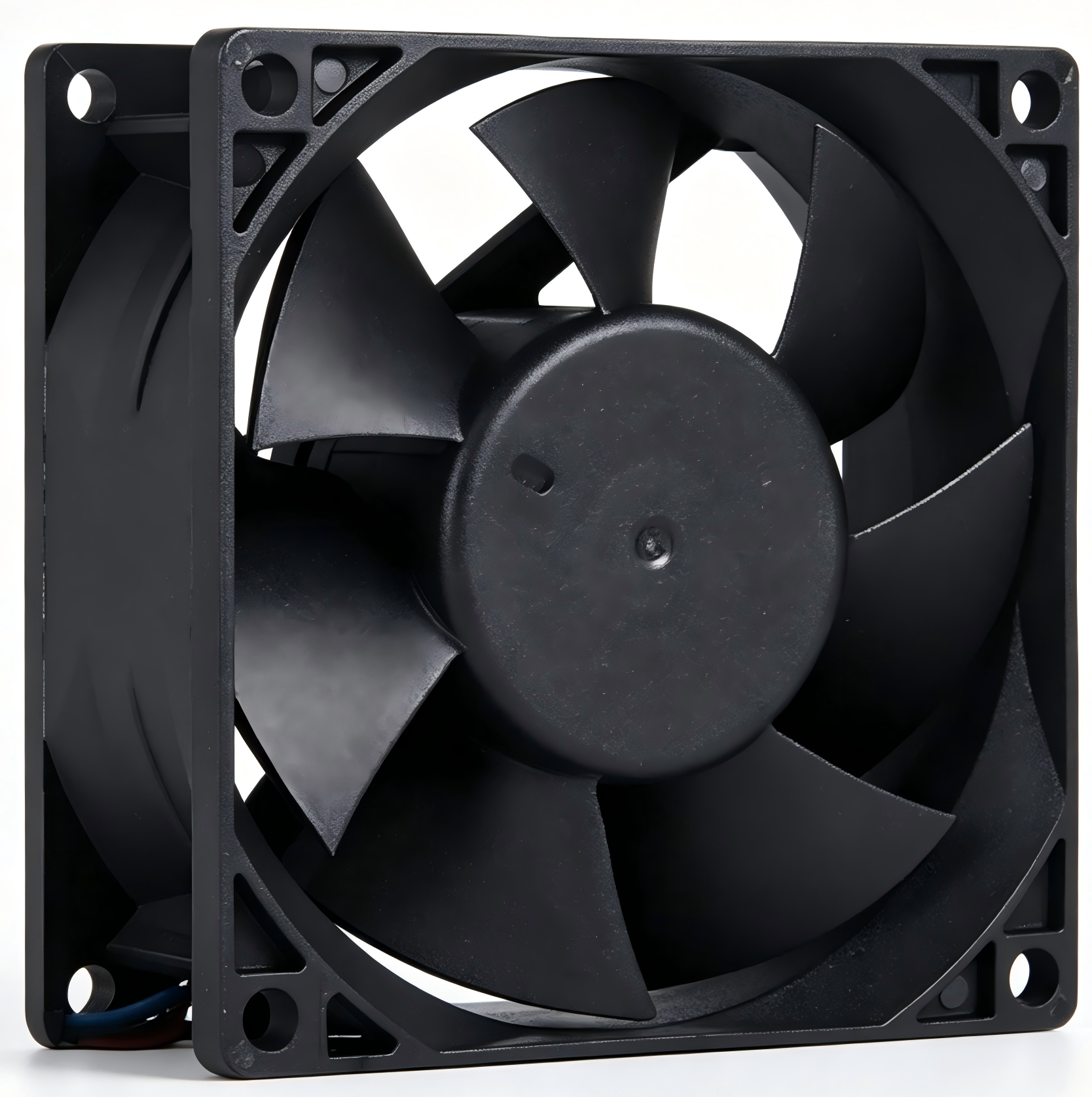

JF8032 80×80×32mm DC Axial Cooling Fan
The JF8032 is a high-output 80 mm DC axial cooling fan with a 32 mm frame depth for servers, power supplies, industrial controls and demanding electronic cooling systems. Available in 12 V, 24 V and 48 V configurations, it provides speeds up to 7000 RPM and airflow up to 93.64 CFM in a robust flame-retardant PBT housing.
Specifications

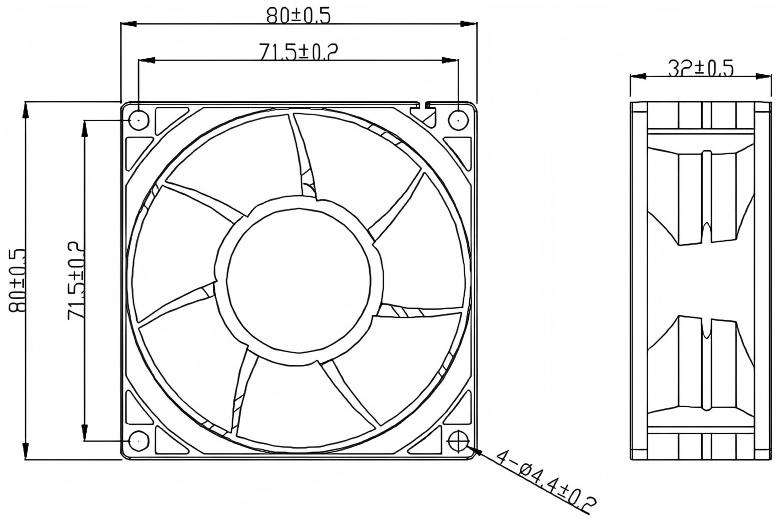

- Dimensions: 80 ± 0.5 × 80 ± 0.5 × 32 ± 0.5 mm
- Mounting-hole centers: 71.5 ± 0.2 mm
- Mounting holes: 4 × Ø4.4 ± 0.2 mm
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC, 24 VDC and 48 VDC
- Speed range: 3500 to 7000 RPM
- Maximum airflow: 2.65 m³/min (93.64 CFM)
- Product weight: 193 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF8032-12L | 12 | 8.0-13.5 | 0.22 | 2.64 | 3500 | 1.32 | 46.55 | 7.30 | 0.287 | 39.0 |
| JF8032-24L | 24 | 18-26.6 | 0.10 | 2.40 | 3500 | 1.32 | 46.55 | 7.30 | 0.287 | 39.0 |
| JF8032-48L | 48 | 36-54 | 0.06 | 2.88 | 3500 | 1.32 | 46.55 | 7.30 | 0.287 | 39.0 |
| JF8032-12M | 12 | 8.0-13.5 | 0.40 | 4.80 | 4500 | 1.70 | 60.00 | 11.88 | 0.467 | 45.8 |
| JF8032-24M | 24 | 18-26.6 | 0.18 | 4.32 | 4500 | 1.70 | 60.00 | 11.88 | 0.467 | 45.8 |
| JF8032-48M | 48 | 36-54 | 0.10 | 4.80 | 4500 | 1.70 | 60.00 | 11.88 | 0.467 | 45.8 |
| JF8032-12H | 12 | 8.0-13.5 | 0.60 | 7.20 | 5500 | 2.11 | 74.50 | 18.10 | 0.71 | 51.0 |
| JF8032-24H | 24 | 18-26.6 | 0.30 | 7.20 | 5500 | 2.11 | 74.50 | 18.10 | 0.71 | 51.0 |
| JF8032-48H | 48 | 36-54 | 0.20 | 9.60 | 5500 | 2.11 | 74.50 | 18.10 | 0.71 | 51.0 |
| JF8032-12H | 12 | 8.0-13.5 | 0.70 | 8.40 | 6000 | 2.31 | 81.52 | 21.61 | 0.85 | 54.0 |
| JF8032-24H | 24 | 18-26.6 | 0.36 | 8.64 | 6000 | 2.31 | 81.52 | 21.61 | 0.85 | 54.0 |
| JF8032-48H | 48 | 36-54 | 0.22 | 10.56 | 6000 | 2.31 | 81.52 | 21.61 | 0.85 | 54.0 |
| JF8032-12U | 12 | 8.0-13.5 | 1.20 | 14.40 | 7000 | 2.65 | 93.64 | 25.28 | 0.99 | 59.0 |
| JF8032-24U | 24 | 18-26.6 | 0.60 | 14.40 | 7000 | 2.65 | 93.64 | 25.28 | 0.99 | 59.0 |
| JF8032-48U | 48 | 36-54 | 0.30 | 14.40 | 7000 | 2.65 | 93.64 | 25.28 | 0.99 | 59.0 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
