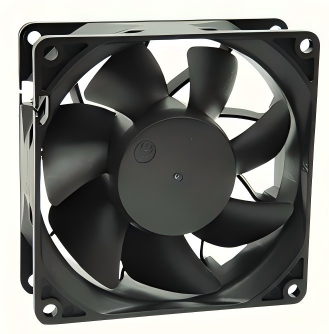

JF9232 92脳92脳32mm DC Axial Cooling Fan
The July Fan JF9232 is a high-airflow 92脳92脳32mm DC axial cooling fan designed for servers, industrial controls, power supplies, communications equipment and other demanding thermal-management applications. Available in 12V, 24V and 48V versions, the series delivers up to 102.79 CFM with a choice of three speed grades.
Product Specifications
- Frame size92 脳 92 脳 32 mm
- Rated voltage12V / 24V / 48V DC
- Mounting-hole centers82.5 脳 82.5 mm
- Mounting holes4 脳 脴4.4 mm
- Bearing systemBall or sleeve bearing
- Frame / impellerThermoplastic PBT, UL 94V-0
- Speed range3000鈥?000 RPM
- Maximum airflow2.91 m鲁/min / 102.79 CFM
- Maximum static pressure15.71 mmH鈧侽 / 0.62 inH鈧侽
- Weight180 g
Performance Data
| PART NO. | Rated Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m鲁/min) | Air Flow (CFM) | Static Pressure (mmH鈧侽) | Static Pressure (inH鈧侽) | Noise (dBA) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF9232-12H | 12 | 0.70 | 8.40 | 5000 | 2.91 | 102.79 | 15.71 | 0.62 | 50.99 | 180 |
| JF9232-12M | 12 | 0.43 | 5.16 | 4000 | 2.33 | 82.23 | 10.05 | 0.40 | 46.14 | 180 |
| JF9232-12L | 12 | 0.19 | 2.28 | 3000 | 1.75 | 61.67 | 5.66 | 0.22 | 39.89 | 180 |
| JF9232-24H | 24 | 0.40 | 9.60 | 5000 | 2.91 | 102.79 | 15.71 | 0.62 | 50.99 | 180 |
| JF9232-24M | 24 | 0.29 | 6.96 | 4000 | 2.33 | 82.23 | 10.05 | 0.40 | 46.14 | 180 |
| JF9232-24L | 24 | 0.13 | 3.12 | 3000 | 1.75 | 61.67 | 5.66 | 0.22 | 39.89 | 180 |
| JF9232-48H | 48 | 0.22 | 10.56 | 5000 | 2.91 | 102.79 | 15.71 | 0.62 | 50.99 | 180 |
| JF9232-48M | 48 | 0.17 | 8.16 | 4000 | 2.33 | 82.23 | 10.05 | 0.40 | 46.14 | 180 |
| JF9232-48L | 48 | 0.09 | 4.32 | 3000 | 1.75 | 61.67 | 5.66 | 0.22 | 39.89 | 180 |
Performance values are measured at rated voltage and are intended for model selection. Specifications may be adjusted for application requirements; contact July Fan for bearing options, lead wires, connectors, speed control and signal-output functions.
