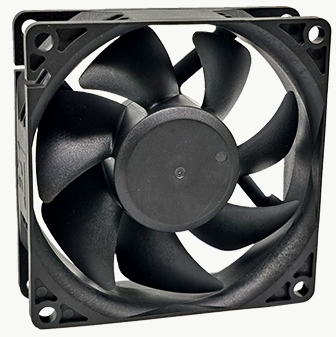

JF8025 80×80×25mm DC Axial Cooling Fan
The JF8025 is a versatile 80 mm DC axial cooling fan with a 25 mm frame depth for industrial electronics, power supplies, communication systems and control cabinets. Available in 12 V, 24 V and 48 V versions, it delivers speeds from 2500 to 4500 RPM and airflow up to 54.67 CFM in a durable flame-retardant PBT housing.
Specifications

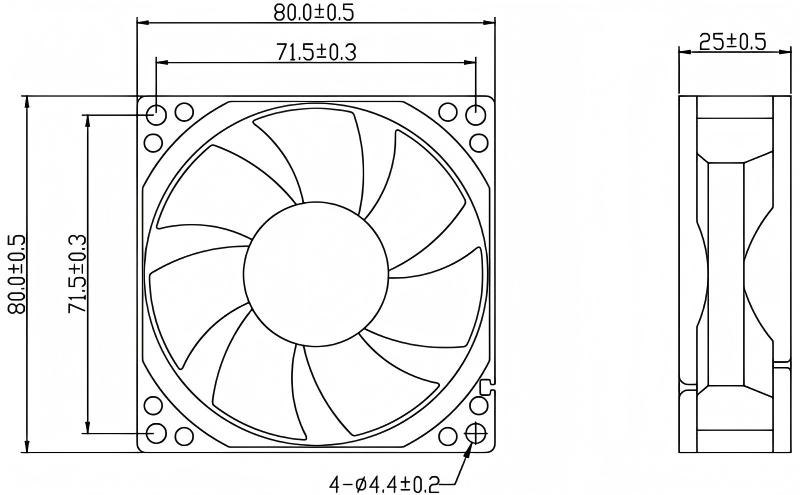

- Dimensions: 80 ± 0.5 × 80 ± 0.5 × 25 ± 0.5 mm
- Mounting-hole centers: 71.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.4 ± 0.2 mm
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC, 24 VDC and 48 VDC
- Speed range: 2500 to 4500 RPM
- Maximum airflow: 1.55 m³/min (54.67 CFM)
- Product weight: 72 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF8025-12L | 12 | 7.0-13.5 | 0.14 | 1.68 | 2500 | 0.86 | 30.54 | 2.64 | 0.10 | 28.9 |
| JF8025-24L | 24 | 18-26.5 | 0.07 | 1.68 | 2500 | 0.86 | 30.54 | 2.64 | 0.10 | 28.9 |
| JF8025-12M | 12 | 7.0-13.5 | 0.20 | 2.40 | 3000 | 1.03 | 36.46 | 3.59 | 0.14 | 33.8 |
| JF8025-24M | 24 | 18-26.5 | 0.11 | 2.64 | 3000 | 1.03 | 36.46 | 3.59 | 0.14 | 33.8 |
| JF8025-12H | 12 | 7.0-13.5 | 0.26 | 3.12 | 3500 | 1.20 | 42.37 | 4.80 | 0.19 | 38.5 |
| JF8025-24H | 24 | 18-26.5 | 0.13 | 3.12 | 3500 | 1.20 | 42.37 | 4.80 | 0.19 | 38.5 |
| JF8025-48H | 48 | 36-54 | 0.06 | 2.88 | 3500 | 1.20 | 42.37 | 4.80 | 0.19 | 38.5 |
| JF8025-12H | 12 | 7.0-13.5 | 0.32 | 3.84 | 4000 | 1.37 | 48.53 | 6.12 | 0.24 | 41.0 |
| JF8025-24H | 24 | 18-26.5 | 0.16 | 3.84 | 4000 | 1.37 | 48.53 | 6.12 | 0.24 | 41.0 |
| JF8025-48H | 48 | 36-54 | 0.09 | 4.32 | 4000 | 1.37 | 48.53 | 6.12 | 0.24 | 41.0 |
| JF8025-24U | 24 | 18-26.5 | 0.23 | 5.52 | 4500 | 1.55 | 54.67 | 7.64 | 0.30 | 44.3 |
| JF8025-48U | 48 | 36-54 | 0.10 | 4.80 | 4500 | 1.55 | 54.67 | 7.64 | 0.30 | 44.3 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
