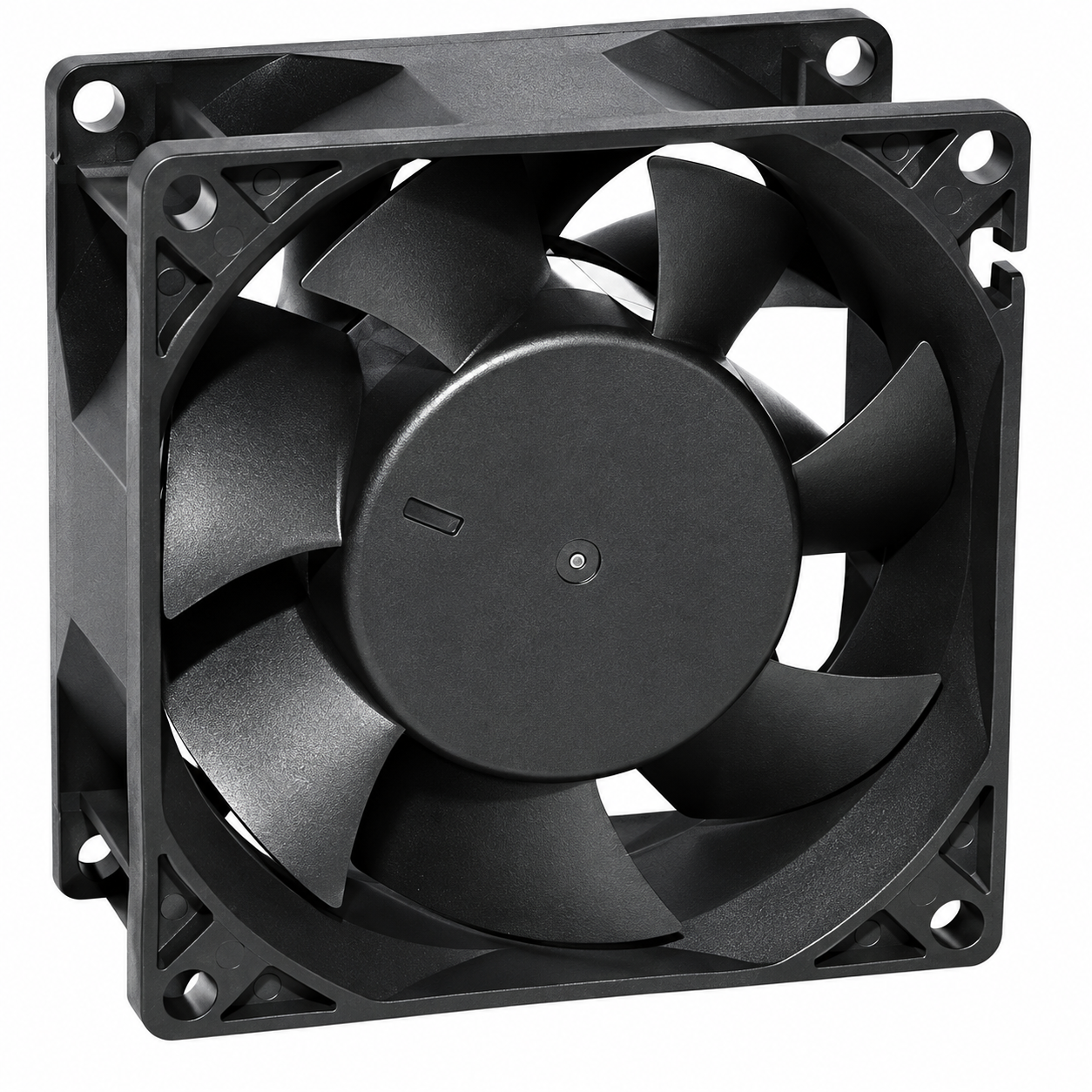

JF8038 80×80×38mm DC Axial Cooling Fan
The JF8038 is a high-pressure 80 mm DC axial cooling fan with a 38 mm frame depth for servers, telecommunications, power electronics and intensive industrial cooling. Its 12 V, 24 V and 48 V configurations reach up to 8500 RPM, 111.87 CFM airflow and 35.67 mmH2O static pressure in a rugged flame-retardant PBT housing.
Specifications

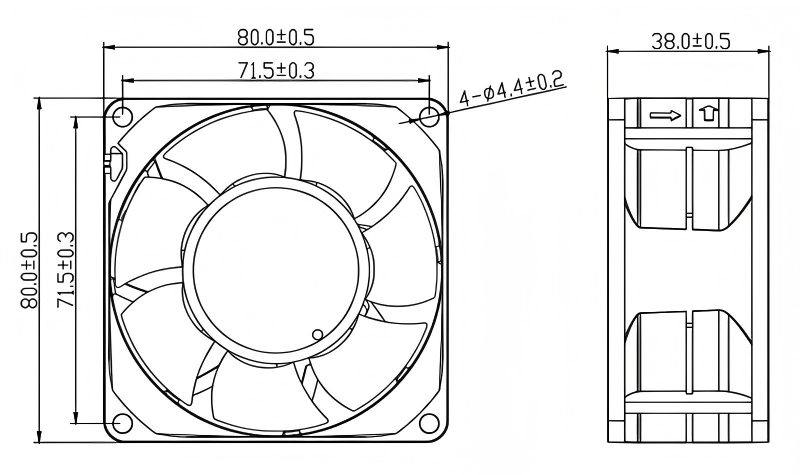

- Dimensions: 80 ± 0.5 × 80 ± 0.5 × 38 ± 0.5 mm
- Mounting-hole centers: 71.5 ± 0.3 mm
- Mounting holes: 4 × Ø4.4 ± 0.2 mm
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC, 24 VDC and 48 VDC
- Speed range: 4000 to 8500 RPM
- Maximum airflow: 3.17 m³/min (111.87 CFM)
- Product weight: 177.6 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF8038-12L | 12 | 8.0-13.5 | 0.40 | 4.80 | 4000 | 1.42 | 50.03 | 8.10 | 0.32 | 45.6 |
| JF8038-24L | 24 | 18-26.5 | 0.20 | 4.80 | 4000 | 1.42 | 50.03 | 8.10 | 0.32 | 45.6 |
| JF8038-48L | 48 | 36-54 | 0.10 | 4.80 | 4000 | 1.42 | 50.03 | 8.10 | 0.32 | 45.6 |
| JF8038-12M | 12 | 8.0-13.5 | 0.79 | 9.48 | 5500 | 1.94 | 68.55 | 13.91 | 0.55 | 54.2 |
| JF8038-24M | 24 | 18-26.5 | 0.34 | 8.16 | 5500 | 1.94 | 68.55 | 13.91 | 0.55 | 54.2 |
| JF8038-48M | 48 | 36-54 | 0.16 | 7.68 | 5500 | 1.94 | 68.55 | 13.91 | 0.55 | 54.2 |
| JF8038-12H | 12 | 8.0-13.5 | 0.92 | 11.04 | 6000 | 2.12 | 75.01 | 16.53 | 0.65 | 56.2 |
| JF8038-24H | 24 | 18-26.5 | 0.42 | 10.08 | 6000 | 2.12 | 75.01 | 16.53 | 0.65 | 56.2 |
| JF8038-48H | 48 | 36-54 | 0.20 | 9.60 | 6000 | 2.12 | 75.01 | 16.53 | 0.65 | 56.2 |
| JF8038-12H | 12 | 8.0-13.5 | 1.32 | 15.84 | 7000 | 2.55 | 89.97 | 23.76 | 0.94 | 61.0 |
| JF8038-24H | 24 | 18-26.5 | 0.68 | 16.32 | 7000 | 2.55 | 89.97 | 23.76 | 0.94 | 61.0 |
| JF8038-48H | 48 | 36-54 | 0.35 | 16.80 | 7000 | 2.55 | 89.97 | 23.76 | 0.94 | 61.0 |
| JF8038-12H | 12 | 8.0-13.5 | 1.62 | 19.44 | 7500 | 2.76 | 97.41 | 27.59 | 1.09 | 63.5 |
| JF8038-24H | 24 | 18-26.5 | 0.80 | 19.20 | 7500 | 2.76 | 97.41 | 27.59 | 1.09 | 63.5 |
| JF8038-48H | 48 | 36-54 | 0.45 | 21.60 | 7500 | 2.76 | 97.41 | 27.59 | 1.09 | 63.5 |
| JF8038-12U | 12 | 8.0-13.5 | 2.50 | 30.00 | 8500 | 3.17 | 111.87 | 35.67 | 1.40 | 66.6 |
| JF8038-24U | 24 | 18-26.5 | 1.35 | 30.00 | 8500 | 3.17 | 111.87 | 35.67 | 1.40 | 66.6 |
| JF8038-48U | 48 | 36-54 | 0.63 | 30.20 | 8500 | 3.17 | 111.87 | 35.67 | 1.40 | 66.6 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
