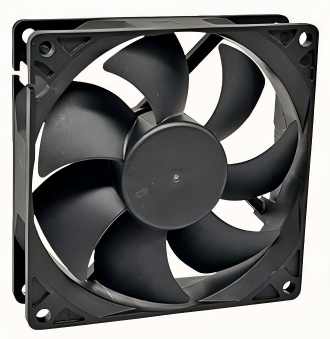

JF9225 92×92×25mm DC Axial Cooling Fan
The JF9225 is a compact 92 mm DC axial cooling fan with a 25 mm frame depth for industrial electronics, communication equipment, power supplies and control cabinets. Available in 12 V, 24 V and 48 V configurations, it offers speeds from 2000 to 4500 RPM and airflow up to 73.55 CFM in a durable flame-retardant PBT housing.
Specifications
- Dimensions: 92 ± 0.5 × 92 ± 0.5 × 25 ± 0.5 mm
- Mounting-hole centers: 82.5 ± 0.2 mm
- Mounting holes: 4 × Ø4.4 ± 0.2 mm
- Bearing system: Ball or sleeve bearing
- Frame: Thermoplastic PBT, UL 94V-0
- Impeller: Thermoplastic PBT, UL 94V-0
- Rated voltage options: 12 VDC, 24 VDC and 48 VDC
- Speed range: 2000 to 4500 RPM
- Maximum airflow: 2.08 m³/min (73.55 CFM)
- Product weight: 102 g
Performance Data
| Model | Rated Voltage (VDC) | Operating Voltage (VDC) | Rated Current (A) | Rated Input Power (W) | Speed (RPM) | Air Flow (m³/min) | Air Flow (CFM) | Air Pressure (mmH2O) | Air Pressure (inH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|---|
| JF9225-12L | 12 | 7.0-13.5 | 0.07 | 0.84 | 2000 | 0.91 | 32.29 | 1.97 | 0.08 | 26.0 |
| JF9225-24L | 24 | 18-26.5 | 0.05 | 1.20 | 2000 | 0.91 | 32.29 | 1.97 | 0.08 | 26.0 |
| JF9225-12M | 12 | 7.0-13.5 | 0.10 | 1.20 | 2500 | 1.17 | 41.34 | 3.12 | 0.12 | 33.2 |
| JF9225-24M | 24 | 18-26.5 | 0.06 | 1.44 | 2500 | 1.17 | 41.34 | 3.12 | 0.12 | 33.2 |
| JF9225-48M | 48 | 36-54 | 0.04 | 1.92 | 2500 | 1.17 | 41.34 | 3.12 | 0.12 | 33.2 |
| JF9225-12H | 12 | 7.0-13.5 | 0.23 | 2.76 | 3500 | 1.65 | 58.11 | 5.58 | 0.22 | 42.6 |
| JF9225-24H | 24 | 18-26.5 | 0.13 | 3.12 | 3500 | 1.65 | 58.11 | 5.58 | 0.22 | 42.6 |
| JF9225-48H | 48 | 36-54 | 0.06 | 2.88 | 3500 | 1.65 | 58.11 | 5.58 | 0.22 | 42.6 |
| JF9225-24H | 24 | 18-26.5 | 0.20 | 4.80 | 4500 | 2.08 | 73.55 | 8.57 | 0.34 | 49.0 |
| JF9225-48H | 48 | 36-54 | 0.11 | 5.28 | 4500 | 2.08 | 73.55 | 8.57 | 0.34 | 49.0 |
Performance values are measured at rated voltage. Specifications are subject to change without notice. Contact July Fan for alternate speeds, voltages, connectors and optional signal or speed-control functions.
