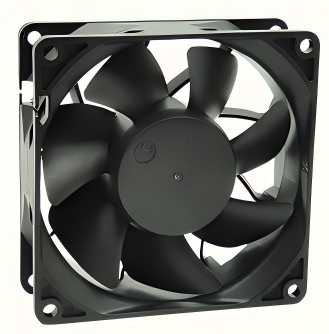

JF9238 92脳92脳38mm High-Performance DC Axial Cooling Fan
The July Fan JF9238 is a high-performance 92脳92脳38mm DC axial cooling fan engineered for servers, power supplies, industrial controls, communications equipment and other high-resistance cooling systems. Its 12V, 24V and 48V configurations cover 3000鈥?000 RPM and deliver airflow up to 166.69 CFM with static pressure up to 36.79 mmH鈧侽.
Product Specifications

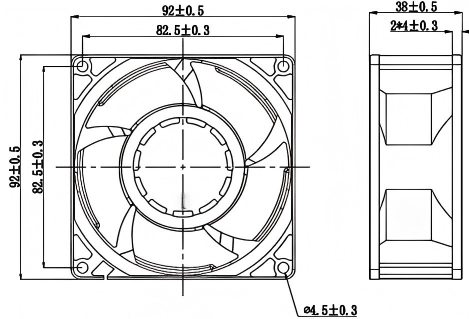

- Frame size92 脳 92 脳 38 mm
- Rated voltage12V / 24V / 48V DC
- Mounting-hole centers82.5 脳 82.5 mm
- Mounting holes4 脳 脴4.5 mm
- Bearing systemBall or sleeve bearing
- Frame / impellerThermoplastic PBT, UL 94V-0
- Speed range3000鈥?000 RPM
- Maximum airflow4.72 m鲁/min / 166.69 CFM
- Maximum static pressure36.79 mmH鈧侽 / 1.45 inH鈧侽
- Weight202 g
Performance Data
| PART NO. | Rated Voltage (VDC) | Operating Range (VDC) | Current (A) | Input Power (W) | Speed (RPM) | Air Flow (m鲁/min) | Air Flow (CFM) | Pressure (mmH鈧侽) | Pressure (inH鈧侽) | Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|---|
| JS9238B12L | 12 | 8.0鈥?3.5 | 0.20 | 2.40 | 3000 | 1.70 | 59.87 | 6.37 | 0.25 | 39 |
| JS9238B24L | 24 | 18鈥?6.5 | 0.10 | 2.40 | 3000 | 1.70 | 59.87 | 6.37 | 0.25 | 39 |
| JS9238B48L | 48 | 36鈥?4 | 0.05 | 2.52 | 3000 | 1.70 | 59.87 | 6.37 | 0.25 | 39 |
| JS9238B12M | 12 | 8.0鈥?3.5 | 0.34 | 4.08 | 4000 | 2.31 | 81.47 | 10.89 | 0.43 | 46 |
| JS9238B24M | 24 | 18鈥?6.5 | 0.16 | 3.84 | 4000 | 2.31 | 81.47 | 10.89 | 0.43 | 46 |
| JS9238B48M | 48 | 36鈥?4 | 0.08 | 3.84 | 4000 | 2.31 | 81.47 | 10.89 | 0.43 | 46 |
| JS9238B12H | 12 | 8.0鈥?3.5 | 0.82 | 9.84 | 5000 | 2.78 | 98.02 | 14.24 | 0.56 | 51.3 |
| JS9238B24H | 24 | 18鈥?6.5 | 0.40 | 9.60 | 5000 | 2.78 | 98.02 | 14.24 | 0.56 | 51.3 |
| JS9238B48H | 48 | 36鈥?4 | 0.19 | 9.12 | 5000 | 2.78 | 98.02 | 14.24 | 0.56 | 51.3 |
| JS9238B12H | 12 | 8.0鈥?3.5 | 1.01 | 12.12 | 6000 | 3.41 | 120.58 | 20.6 | 0.81 | 58.3 |
| JS9238B24H | 24 | 18鈥?6.5 | 0.48 | 11.52 | 6000 | 3.41 | 120.58 | 20.6 | 0.81 | 58.3 |
| JS9238B48H | 48 | 36鈥?4 | 0.23 | 11.04 | 6000 | 3.41 | 120.58 | 20.6 | 0.81 | 58.3 |
| JS9238B12HH | 12 | 8.0鈥?3.5 | 1.27 | 15.24 | 7000 | 4.06 | 143.39 | 27.65 | 1.09 | 62.1 |
| JS9238B24HH | 24 | 18鈥?6.5 | 0.60 | 14.4 | 7000 | 4.06 | 143.39 | 27.65 | 1.09 | 62.1 |
| JS9238B48HH | 48 | 36鈥?4 | 0.30 | 14.4 | 7000 | 4.06 | 143.39 | 27.65 | 1.09 | 62.1 |
| JS9238B12VH | 12 | 8.0鈥?3.5 | 2.50 | 30.0 | 8000 | 4.72 | 166.69 | 36.79 | 1.45 | 65.5 |
| JS9238B24VH | 24 | 18鈥?6.5 | 1.50 | 36.0 | 8000 | 4.72 | 166.69 | 36.79 | 1.45 | 65.5 |
| JS9238B48VH | 48 | 36鈥?4 | 0.60 | 28.8 | 8000 | 4.72 | 166.69 | 36.79 | 1.45 | 65.5 |
Performance values are measured at rated voltage. The PART NO. values above follow the supplied catalog. Contact July Fan to confirm bearing, lead-wire, connector, protection, signal-output and speed-control options for your application.
